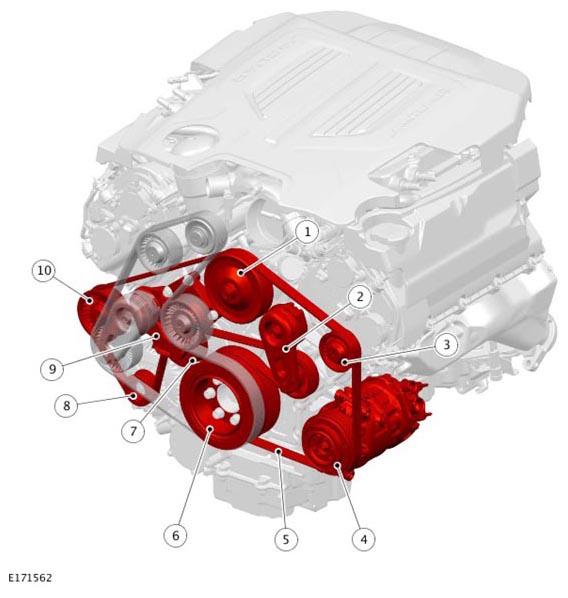

Component Location Sheet 1 Of 2 - Primary Drive Belt
WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
| ITEM |
DESCRIPTION |
| 1 |
Coolant pump |
| 2 |
Primary drive belt tensioner |
| 3 |
Idler pulley |
| 4 |
Air Conditioning (A/C) compressor |
| 5 |
Primary drive belt |
| 6 |
Crankshaft pulley and vibration damper assembly |
| 7 |
Idler pulley |
| 8 |
Generator |
| 9 |
Idler pulley and Secondary drive belt tensioner bracket |
| 10 |
Idler pulley |
