Low Pressure Fuel Pump Assembly (G2781091): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel system.
Avoid flames, sparks or lighted substances.
Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Always follow the petrol fuel system health and safety precautions, when carrying out any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Release the fuel pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

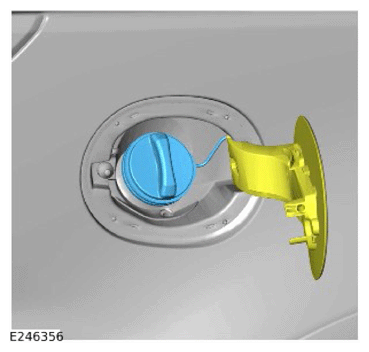

Open the fuel flap and remove the fuel filler cap.
Disconnect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

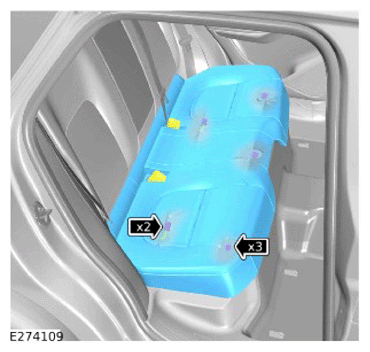

- Release the second row seat cushion from the 3 retaining clips.
- Disconnect the 2 electrical connectors.
- Remove the second row seat cushion.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

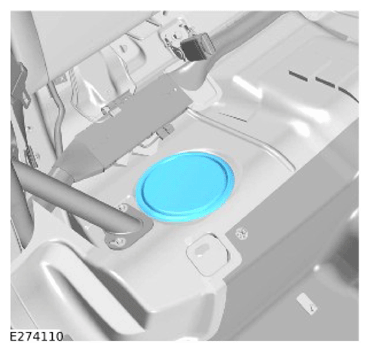

Remove the Low Pressure (LP) fuel pump access cover.
CAUTION: Be prepared to collect escaping fuel.

NOTE: If Fuel Fired Booster Heater (FFBH) is equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

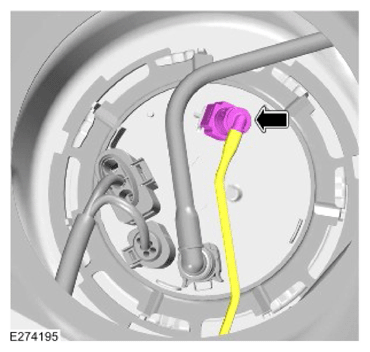

Disconnect the FFBH fuel line.
CAUTION: Be prepared to collect escaping fuel.

NOTE: If FFBH is not equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

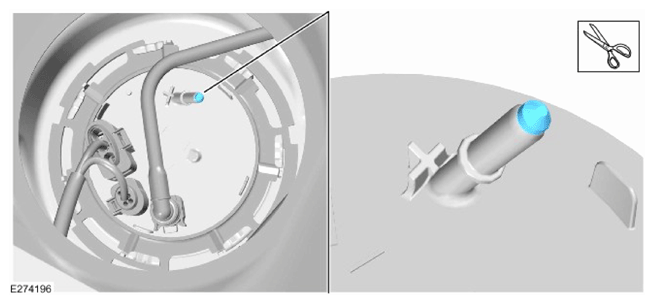

Cut the top from the fuel tank drain port.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

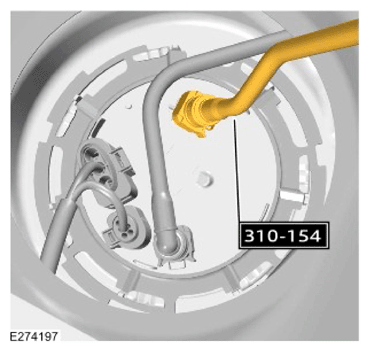

- Connect the special tool onto the fuel tank drain port.
  Special Tool(s): 310-154
- Connect the Jaguar Land Rover (JLR) approved fuel retrieval and storage system to the vehicle in accordance with the manufactures instructions.
  General Equipment: Fuel retrieval and storage system
- Connect the special tool to the JLR approved fuel retrieval and storage system.
- Use the JLR approved fuel retrieval and storage system, to partially drain the fuel tank.
- Disconnect the special tool from the fuel tank drain port, and the JLR approved fuel retrieval and storage system.
- Disconnect the JLR approved fuel retrieval and storage system from the vehicle.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

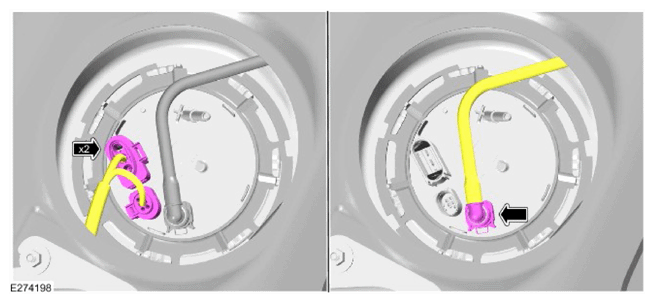

- Disconnect the 2 electrical connectors from the LP fuel pump assembly.
- Disconnect the fuel line from the LP fuel pump assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

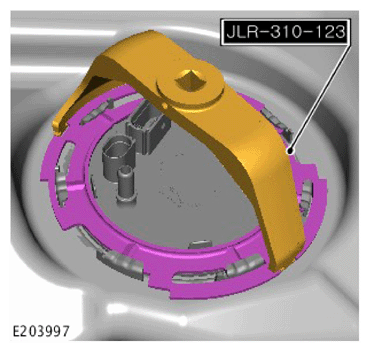

Use the special tool to remove the LP fuel pump retaining ring.

Special Tool(s): 310-123
NOTE: Note the position of LP fuel pump before removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

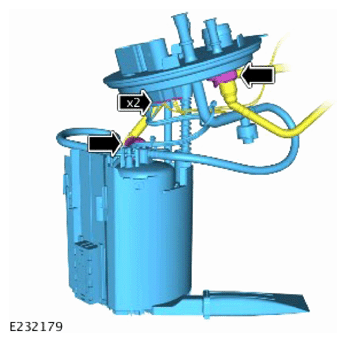

- Disconnect the 2 electrical connectors from the LP fuel pump assembly.
- Disconnect the in tank fuel line from the LP fuel pump assembly.
- Disconnect the fuel vapor pipe from the LP fuel pump assembly.
- Remove the LP fuel pump assembly from the fuel tank.
