Fuel Tank Filler Pipe (G2781643): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Components must be install as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

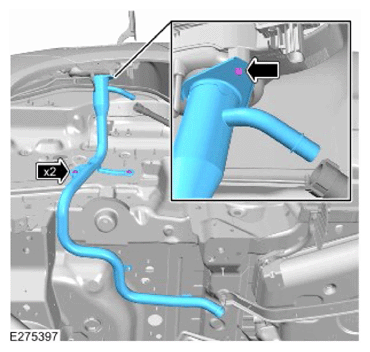

- Install the fuel tank filler pipe.

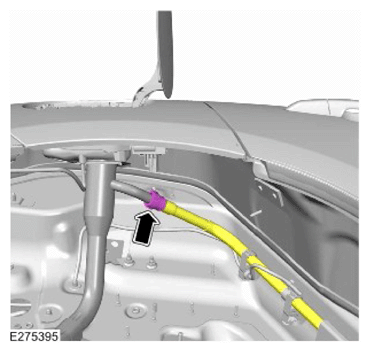

- Install and tighten the 2 bolts.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install and tighten the 2 bolts.
  Torque : 7 Nm

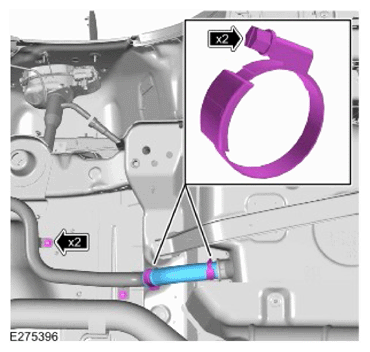

- Install the 2 clamps to the fuel tank filler hose.
- Install the fuel tank filler pipe extension hose.
- Install and tighten the 2 hose clamps.
  Torque : 3.2 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the breather hose.
Install the rear right wheel arch liner.
Refer to: REAR WHEEL ARCH LINER
CAUTION: Make sure the fuel tank has enough fuel to submerge the fuel pump pickup before connecting the battery. Failure to following this instruction could result in damage to the fuel pump.

Refill the fuel tank with the amount recovered during the fuel tank drain procedure.

Refer to: FUEL TANK DRAINING - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL
Connect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Bleed the fuel system.
Refer to: FUEL SYSTEM BLEEDING
