Fuel Pump Module (G2469600): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping fuel.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

The following step(s) applies to:

All vehicles

Before working on the fuel system make sure to study the fuel system health and safety information.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G2623442)
Remove the rear seat.
Refer to: SEATING (G2502303)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

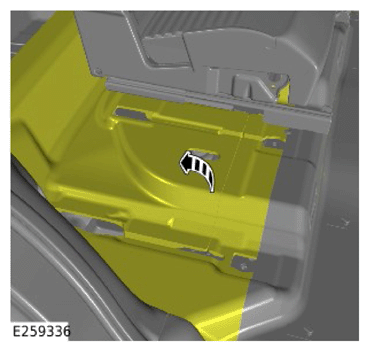

Reposition the rear floor carpet access cover to get access to the fuel pump module access cover.

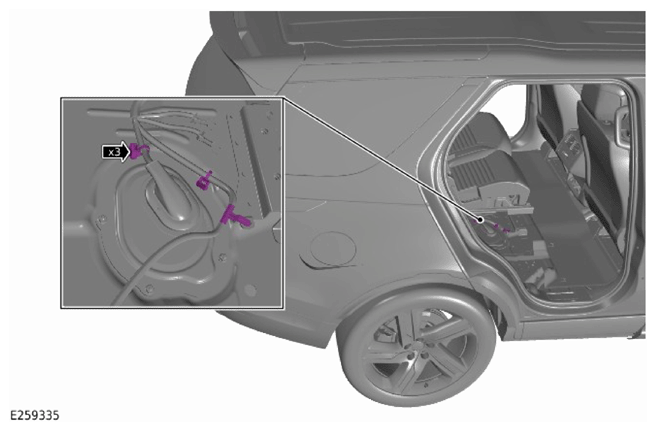

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 wiring harness clips.

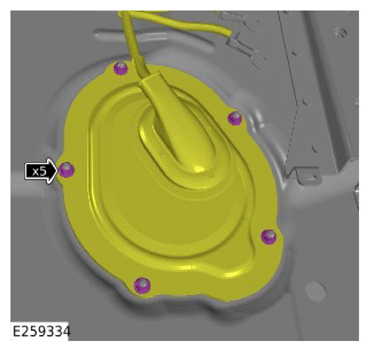

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 5 nuts.
- Reposition the access cover to get access to the fuel pump module.
The following step(s) applies to:

Vehicles with fuel fired booster heater

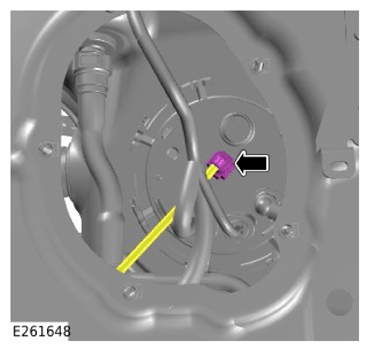

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the fuel line.

The following step(s) applies to:

All vehicles

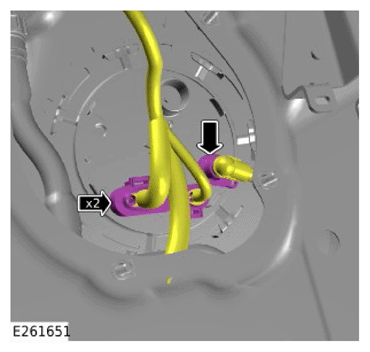

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors.
- Disconnect the fuel line.

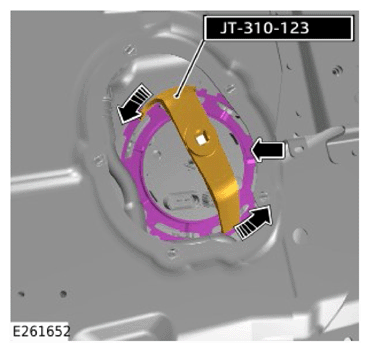

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool to remove the fuel pump module retaining ring.

Special Tool(s): 310-123

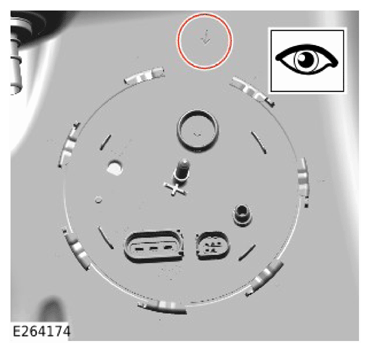

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Note the installed position of the fuel pump module before removal.

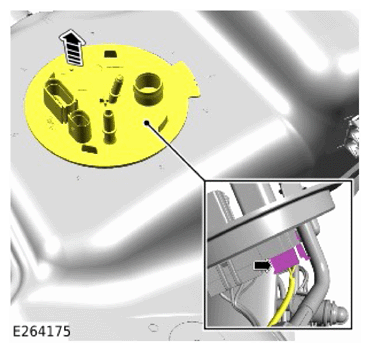

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the fuel pump module to get access to the electrical connector.
- Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

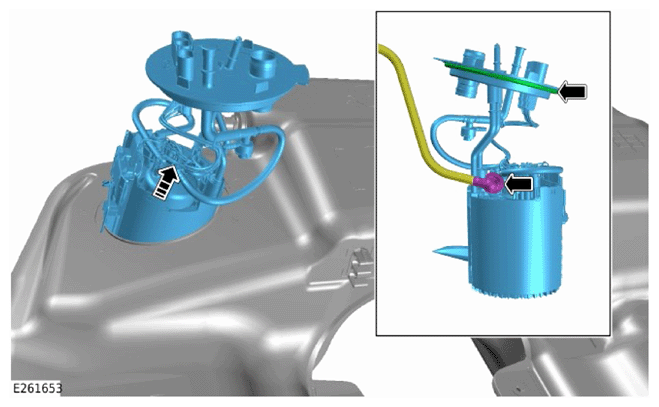

- Remove the fuel pump.
- Remove and discard the O-ring seal.
- Disconnect the fuel line.
