Fuel Pump Driver Module (G2370068): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Be prepared to collect escaping fluids.
Protect the surrounding paintwork to avoid damage.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Always follow the Petrol-Ethanol fuel system health and safety precautions when any repairs to the fuel system are done.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G2623442)
Remove the second row right seat.
Refer to: REMOVAL AND INSTALLATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

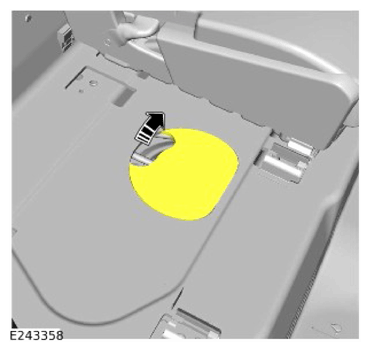

Tie the rear floor carpet access cover aside.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

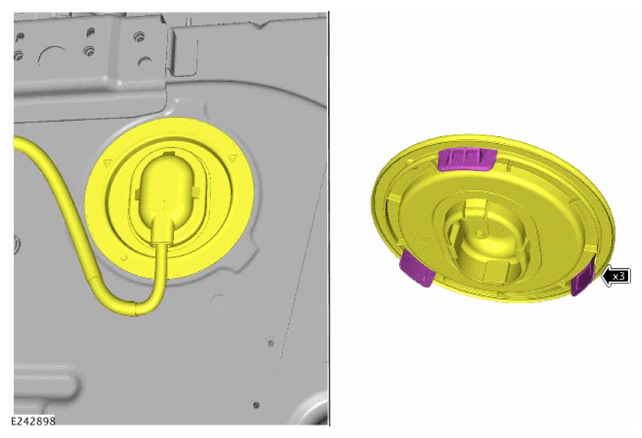

Position the fuel pump access cover aside.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

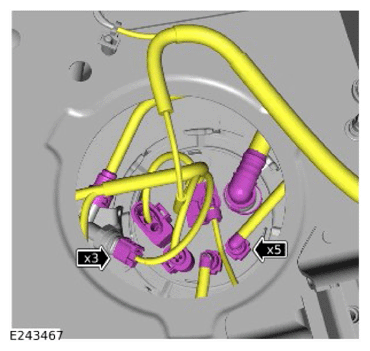

- Disconnect the 3 electrical connectors.
- Disconnect the 4 fuel pipes.
- Disconnect the fuel tank breather tube.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

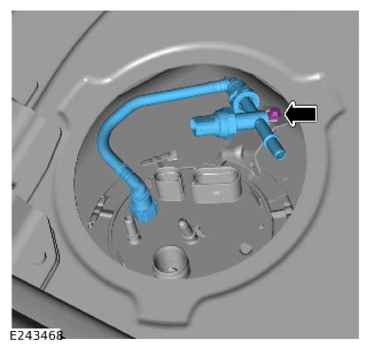

- Remove the bolt.
- Remove the fuel pressure sensor with the fuel pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

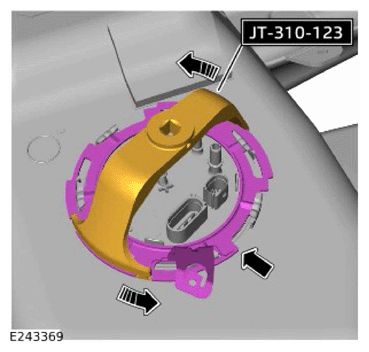

Remove the locking ring.

Special Tool(s): 310-123
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

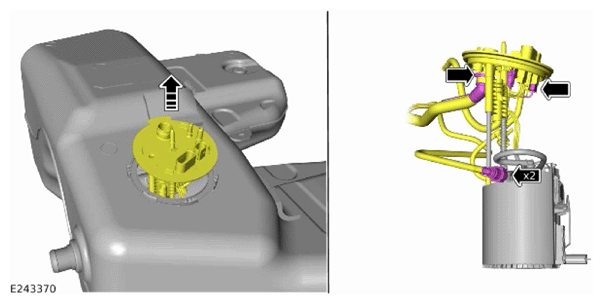

- Disconnect the 2 fuel pipes.
- Disconnect the electrical connector.
- Disconnect the fuel tank breather tube.
NOTE: Note the fuel pump position before removing it.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

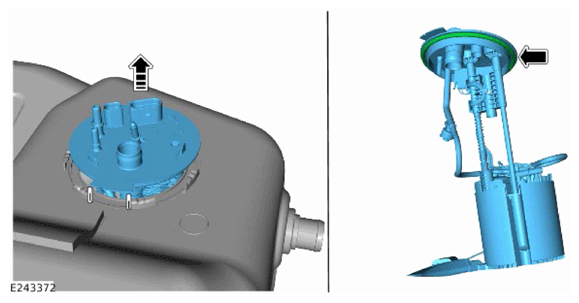

- Remove the fuel pump.
- Remove and discard the O-ring seal.
