Fuel Pump Driver Module (G2370068): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the fuel pump is installed to the position noted on removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

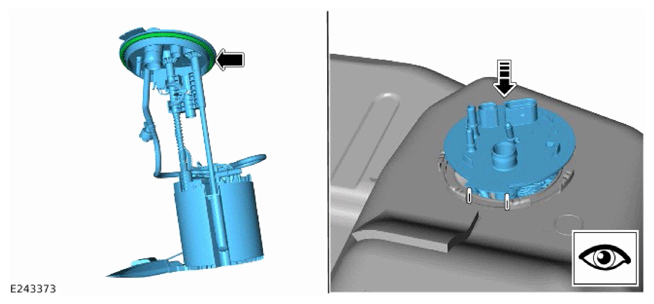

- Install the new O-ring seal.
  Renew Part: Fuel pump O-ring seal Quantity: 1 .
- Install the fuel pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

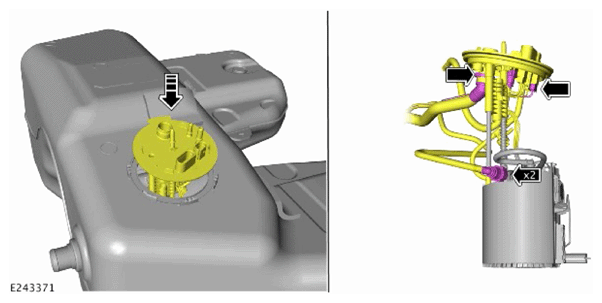

- Connect the electrical connector.
- Connect the 2 fuel pipes.
- Connect the fuel tank breather tube.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

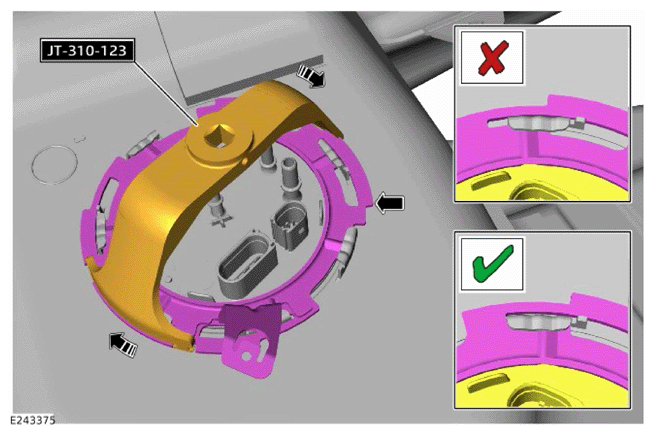

Install the locking ring.

Special Tool(s): 310-123
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

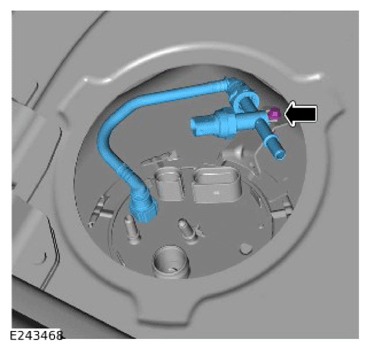

- Install the fuel pressure sensor with the fuel pipe.
- Install and tighten the bolt.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

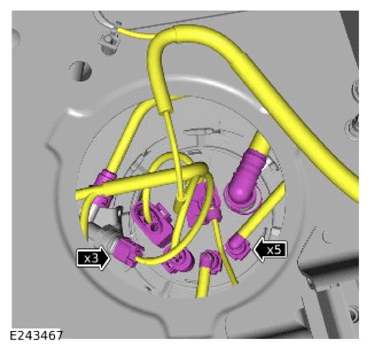

- Connect the 4 fuel pipes.
- Connect the 3 electrical connectors.
- Connect the fuel tank breather tube.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

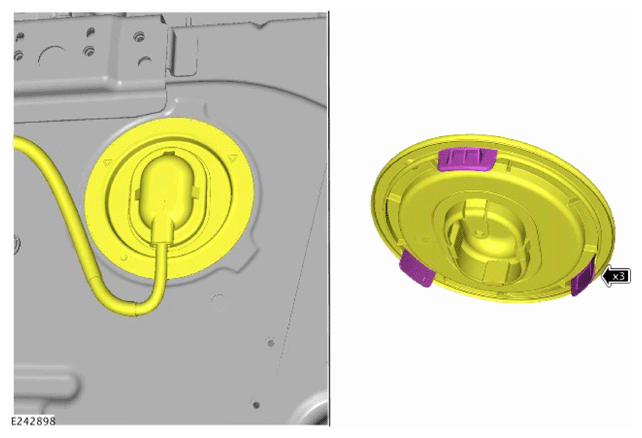

- Reposition and install the fuel pump access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

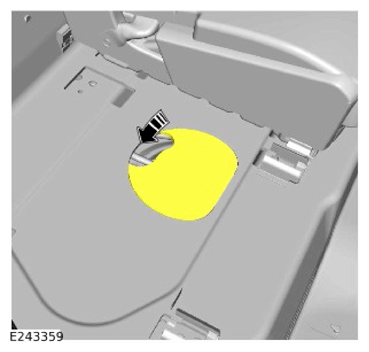

Reposition the rear floor carpet access cover.
Install the second row right seat.
Refer to: REMOVAL AND INSTALLATION
Connect the startup battery.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G2623442)
Bleed the fuel system.
Refer to: FUEL SYSTEM BLEEDING (G1801385)
The FFBH must run for 10 minutes in order to remove any trapped gas in the fuel pump and fuel lines.
