Low Fuel Pressure Sensor
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

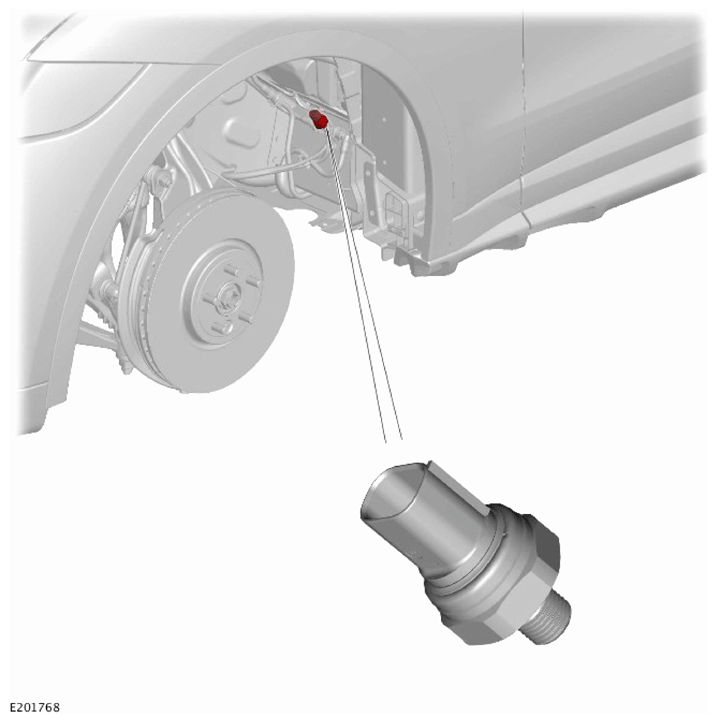

The low fuel pressure sensor is located on a bracket behind the front left wheel arch liner. The low fuel pressure sensor is attached to the bracket with 1 screw. The low fuel pressure sensor is located between the LP fuel pump assembly and the HP fuel pump.
The low fuel pressure sensor measures the fuel pressure being supplied from the LP fuel pump assembly to the HP fuel pump.
The low fuel pressure sensor is hardwired to the PCM.
