Fuel Pump Driver Module
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

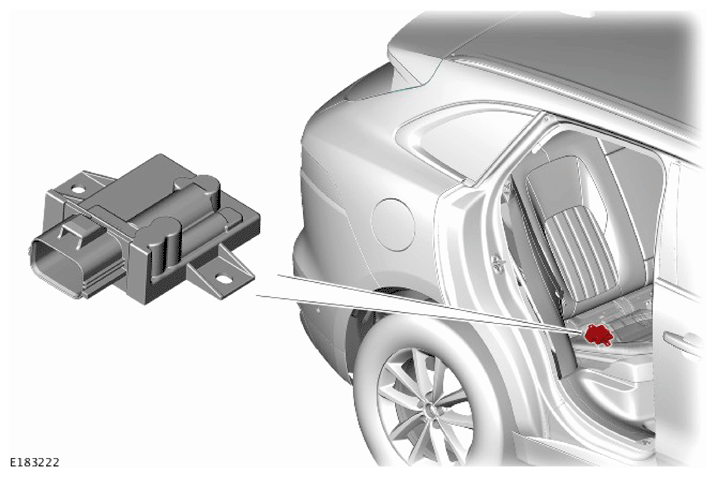

The FPDM is located behind the right second row seat. The FPDM is attached to a bracket and secured by 2 nuts to the rear underfloor reinforcement panel.
The LP fuel pump operation is controlled by the FPDM which is controlled by the PCM. The FPDM receives a Pulse Width Modulated (PWM) signal from the PCM. The FPDM outputs the required power to the LP fuel pump to provide the fuel flow and pressure output.
The FPDM has a single wiring harness connector. The wiring harness connector has the following connections:
- Power supply from the LP fuel pump assembly relay in the Rear Junction Box (RJB).
- PWM signal from the PCM.
- Power to the LP fuel pump in the LP fuel pump assembly.
- Ground for the LP fuel pump in the LP fuel pump assembly.
- Ground.
