Control Diagram
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

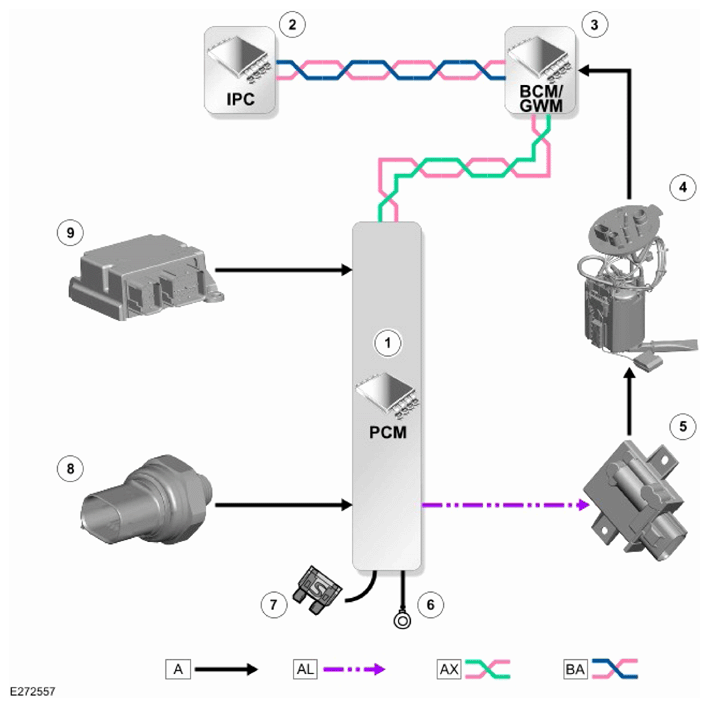

A = HARDWIRED: AL = PWM : AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
PCM |
| 2 |
IPC |
| 3 |
BCM
/GWM |
| 4 |
LP
fuel pump assembly |
| 5 |
FPDM |
| 6 |
Ground |
| 7 |
Power supply |
| 8 |
Low fuel pressure sensor |
| 9 |
RCM
- Crash signal |
