Component Location 1 Of 2 - North AMERICAN Specification And China Market Vehicles Only
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

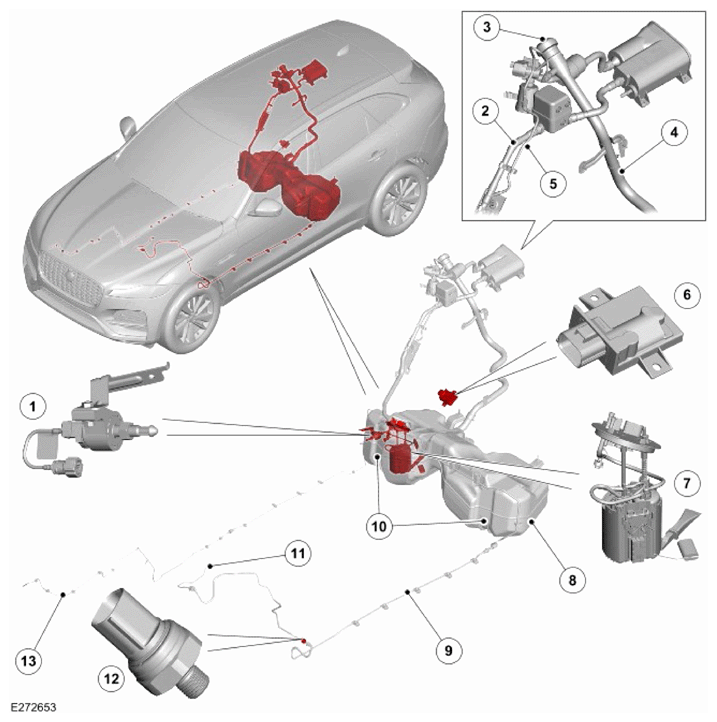

| ITEM | DESCRIPTION |
|---|---|
| 1 | FFBH fuel pump (if equipped) |
| 2 | Fuel tank breather pipe - To fuel vapor separator |
| 3 | Fuel filler cap |
| 4 | Fuel filler pipe |
| 5 | Fuel tank breather pipe - To fuel filler pipe |
| 6 | FPDM |
| 7 | LP fuel pump assembly |
| 8 | Fuel tank |
| 9 | Fuel supply line - To HP fuel pump |
| 10 | Fuel tank support strap (quantity 2) |
| 11 | Fuel supply line connection - To HP fuel pump |
| 12 | Low fuel pressure sensor |
| 13 | Fuel supply line - To FFBH |
