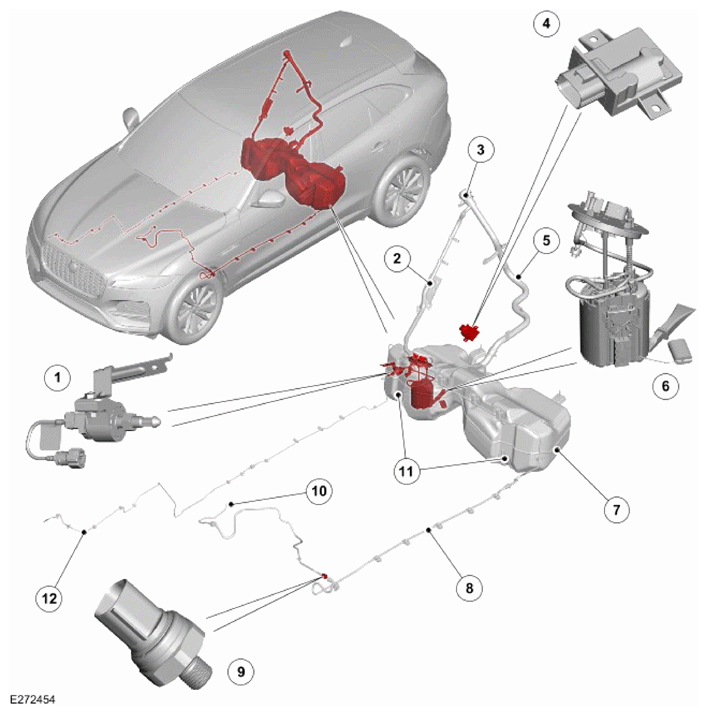

Component Location 1 Of 2 - All Except North AMERICAN Specification And China Market Vehicles
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel Fired Booster Heater (FFBH) fuel pump (if equipped) |
| 2 | Fuel tank breather pipe |
| 3 | Fuel filler cap |
| 4 | Fuel Pump Driver Module (FPDM) |
| 5 | Fuel filler pipe |
| 6 | Low Pressure (LP) fuel pump assembly |
| 7 | Fuel tank |
| 8 | Fuel supply line - To High Pressure (HP) fuel pump |
| 9 | Low fuel pressure sensor |
| 10 | Fuel supply line connection - To HP fuel pump |
| 11 | Fuel tank support strap (quantity 2) |
| 12 | Fuel supply line - To FFBH |
