Starter Motor (G1998287): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Remove the catalytic converter.

    Refer to: CATALYTIC CONVERTER AND GASOLINE PARTICULATE FILTER ASSEMBLY - VEHICLES WITH: ROW SPECIFICATION

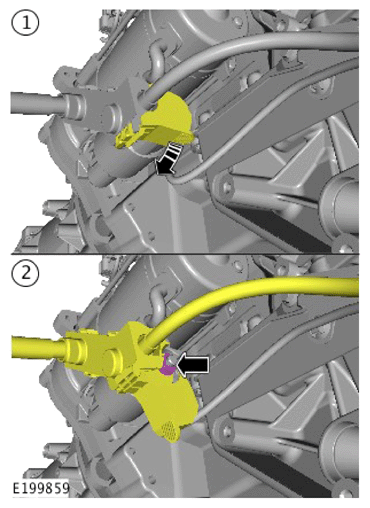

  4. G15621944Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the cover.
    2. Disconnect the startup battery positive cable.

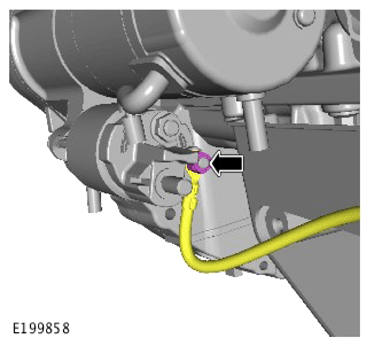

  5. G15621945Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the wiring harness.

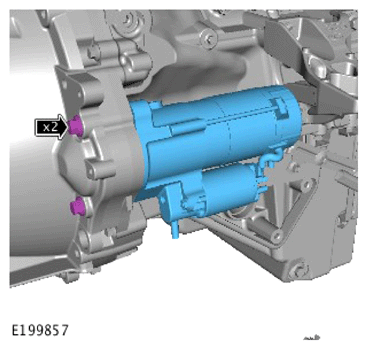

  6. G15621946Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the starter motor.
