Ignition Switch
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

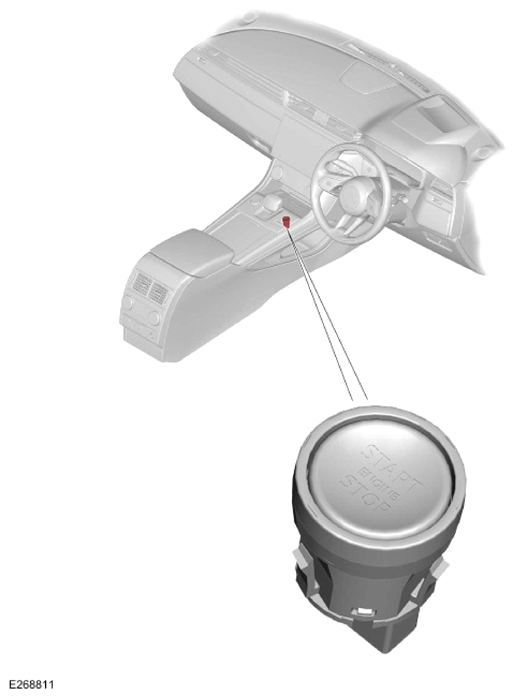

Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.
The ignition switch is located in the floor console and it is hardwired to the BCM /GWM. When the ignition switch is operated, the 2 signal wires from the BCM /GWM return to the BCM /GWM through 1 wire, then connects to the ground.
