Auto Stop/Start Switch
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.

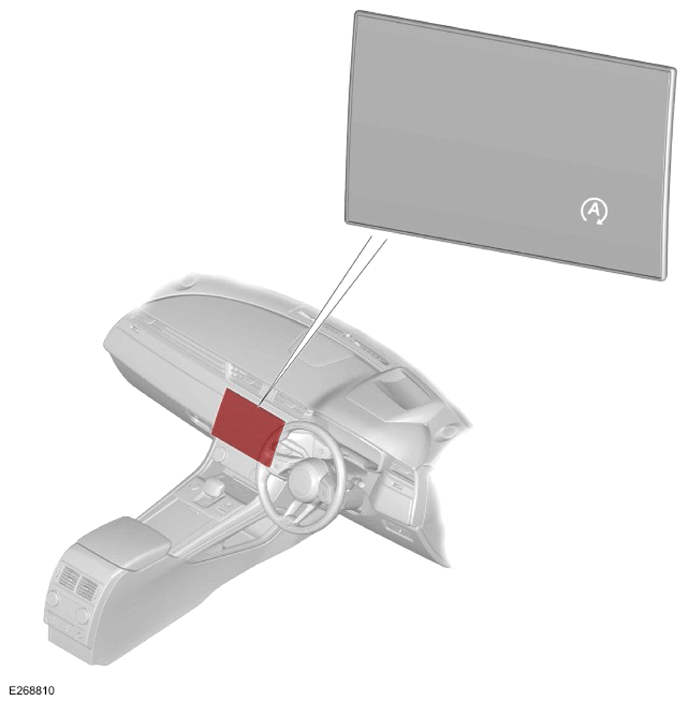

The auto stop/start switch soft key is located in the IDMA , which is located in the center of the instrument panel. The auto stop/start switch soft key can be accessed from the 'Quick settings' menu on the IDMA. When the driver enables or disables the auto stop/start system, the request is transmitted from the IDMA to the BCM /GWM. The request message is transmitted through the HS CAN Human Machine Interface (HMI) systems bus.
