Low Pressure Fuel Pump Assembly (G2767372): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

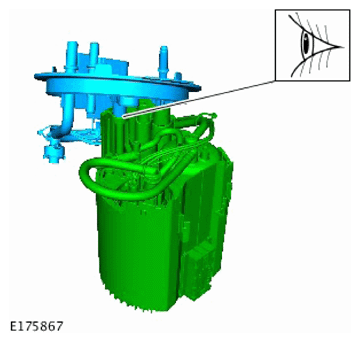

  1. CAUTION:
    • Make sure that the components are correctly aligned.
    • Make sure the fuel tank has enough fuel to submerge the fuel pump pickup before connecting the battery. Failure to following this instruction could result in damage to the fuel pump.
    G15623349Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To install, reverse the removal procedure.
