Engine Assembly Remove For Access - Vehicles With: Automatic Transmission (G2219813): Removal

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

JLR-303-1633

Lifting Bracket, Engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

JLR-303-1673

Engine stand adaptor

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

GENERAL EQUIPMENT

EQUIPMENT NAME
Axle stands
Engine stand
Hydraulic jib crane

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material.
When disconnected all openings must be sealed.
Be prepared to collect escaping fuel.
Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Before working on the fuel system make sure to study the fuel system health and safety article.
Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the hood.
Refer to: HOOD - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL .
Remove the cowl panel.
Refer to: COWL PANEL .
Remove the secondary bulkhead left panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL .
Remove the cooling module.
Refer to: COOLING MODULE .

The following step(s) applies to:

Vehicles with all wheel drive (AWD)
Remove the left front halfshaft.
Refer to: FRONT HALFSHAFT .
Remove the right front halfshaft.
Refer to: FRONT HALFSHAFT .
Remove the front driveshaft.
Refer to: FRONT DRIVESHAFT - AWD .

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolt securing the fluid cooler pipes to the oil pan.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the two exhaust pipe nuts and the gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts. Discard the gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the heatshield to allow access to the exhaust clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 4 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the hose connector.
- Remove the bolt.
- Remove the hoses from the Diesel Particulate Filter (DPF) and remove the sensor assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

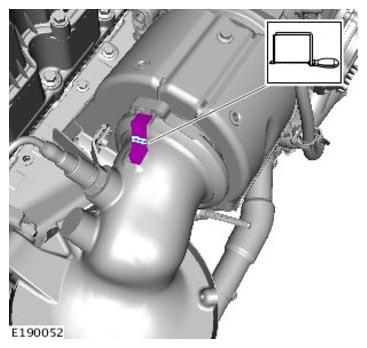

Cut the clamp in the position illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the exhaust clamp and discard the gasket.
- Remove and discard the clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Remove the DPF .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 2 electrical connectors and release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the ground cable connection.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

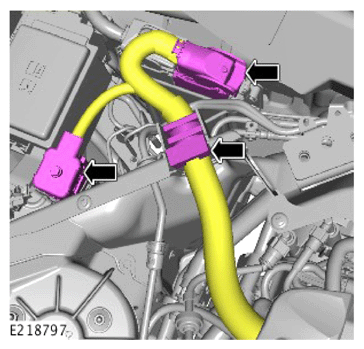

Disconnect the 3 fuel line connectors and position away from the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the transmission cooler coolant hose.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the Air Conditioning (A/C) connector and discard the seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the vacuum solenoid bracket retaining bolt.
- Reposition vacuum solenoid away from the transmission.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

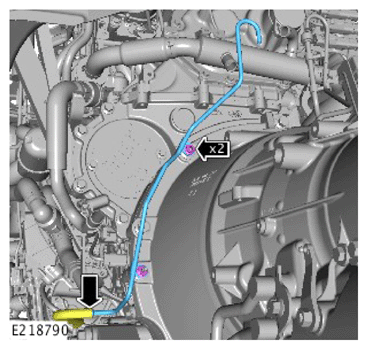

Disconnect the vacuum pipe and position away from the left side engine mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector and reposition away from the transmission.

The following step(s) applies to:

Vehicles with all wheel drive (AWD)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 3 bolts and remove the halfshaft support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 retaining nuts.
- Disconnect the front drive unit breather hose.
- Remove the breather tube.
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the cover to access the terminal.
- Remove the nut and reposition the wiring harness away from the starter motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the starter motor electrical connector and reposition the wiring harness away from the starter motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

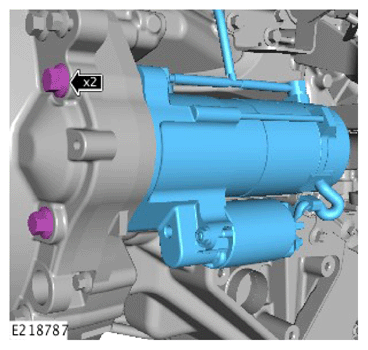

Remove the 2 bolts and remove the starter motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

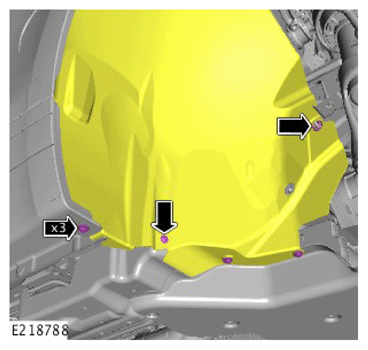

- Remove the 4 screws.
- Remove the fixing washer.
- Reposition the right side fender splash shield towards the front of the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Reposition the junction box cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the starter motor electrical connector from the junction box.
- Remove the starter motor wiring harness retaining nut.
- Release the starter motor wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

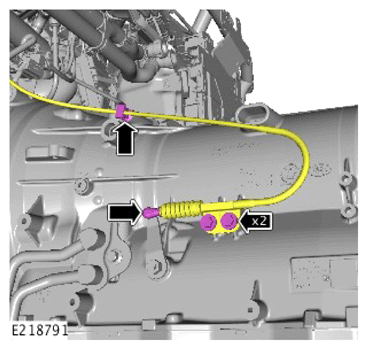

- Remove the 2 bolts from the Emergency Park Release (EPR) retaining bracket.
- Disconnect the EPR cable ball fixing.
- Release the EPR cable fixing and reposition away from the transmission.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

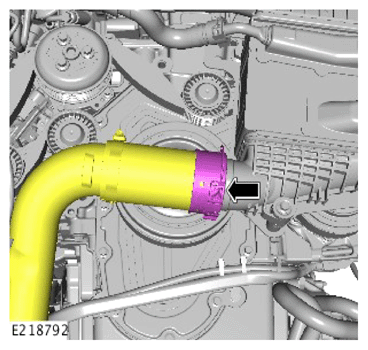

Disconnect the Charge Air Cooler (CAC) inlet pipe and reposition away from the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

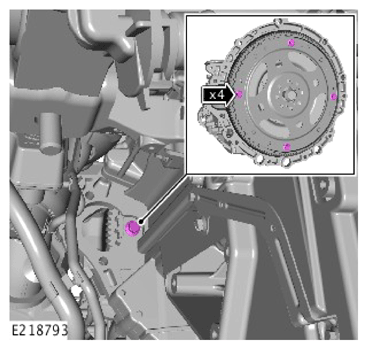

Remove and discard the 4 torque converter bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the coolant hoses and reposition away from the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

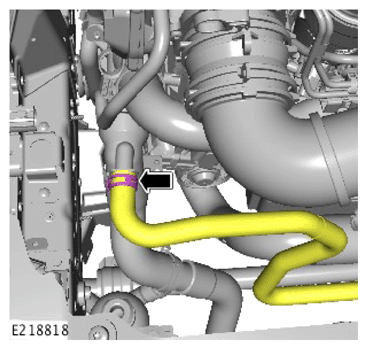

Disconnect the coolant hose and reposition away from the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

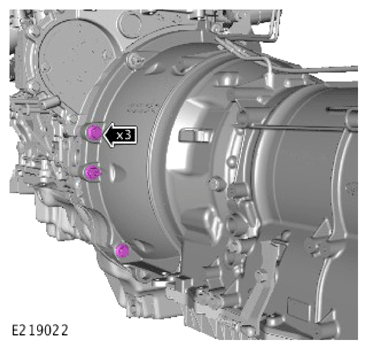

Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

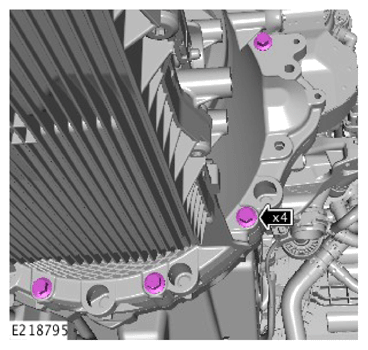

Remove the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

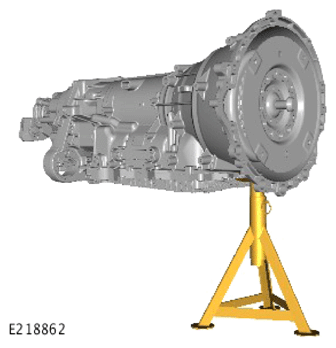

- Lower the vehicle.
- Using a suitable axle stand, support the transmission in the correct position.
  General Equipment: Axle stands
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the engine lifting eyes to the positions shown in the illustration.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

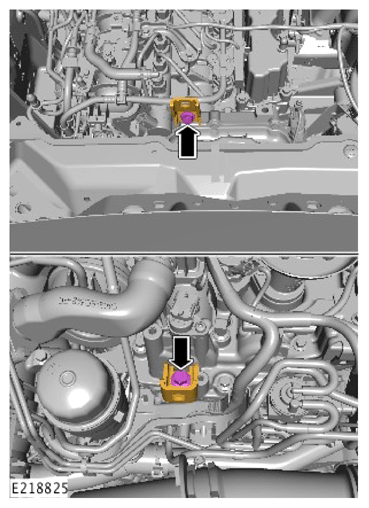

Remove left side engine mount nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right side engine mount nut.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

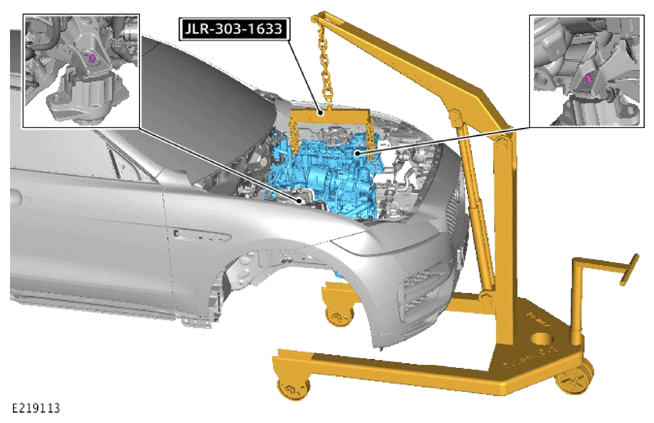

- Install the special service tool, engine lifting bracket.
  Special Tool(s): JLR-303-1633

  General Equipment: Hydraulic jib crane
- Remove the engine assembly from the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the vacuum hose.
- Remove the 2 nuts and remove the vacuum reservoir.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 bolts and remove the left side engine mount bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

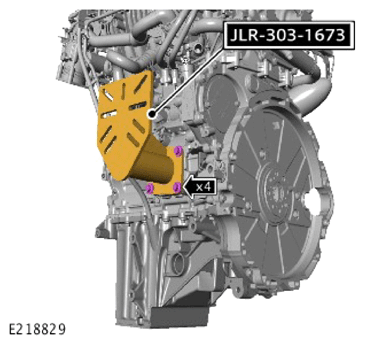

Install the special service tool, engine stand adapter.

Special Tool(s): JLR-303-1673
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

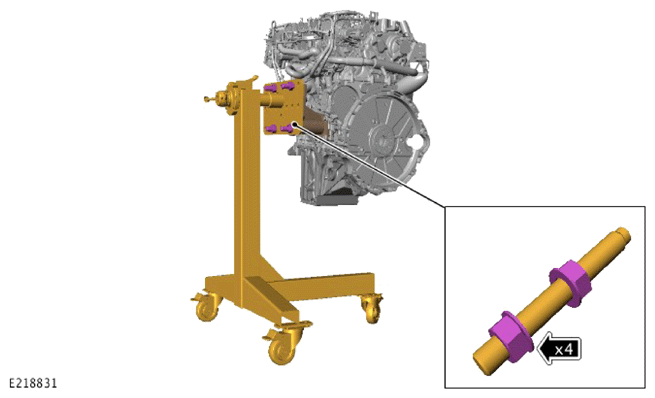

Install engine assembly to the mounting stand.

General Equipment: Engine stand
