Camshaft Carrier (G2172630): Installation

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
  1. G11309038Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    If a new camshaft carrier is not being installed, make sure that the dowels have been cleaned and all traces of sealant is removed.

  2. NOTE: Only carry out this step if previously removed

    Install the lifting brackets.

    Torque  : 47 Nm

  3. NOTE:
    • Only carry out this step if previously removed
    • Install a new seal.

    Install the oil filler neck.

    Renew Part: Oil fill pipe O-ring seal Quantity: 1  .

    Torque  : 12 Nm

  4. NOTE:
    • Only carry out this step if previously removed
    • Install the component and finger tighten the bolts before final tightening in sequence illustrated.
    G11309041Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new seal the breather vent module assembly.

    Renew Part: Breather vent module seal Quantity: 1  .

    Torque  : 12 Nm

  5. NOTE:
    • Only carry out this step if previously removed
    • Install the components and finger tighten the bolts before final tightening in sequence illustrated.
    • Make sure that these components are installed to the noted removal position.
    G11309042Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the camshafts.
    • Install the camshaft bearing caps.

      Torque  : 11 Nm

  6. G11309043Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Align the camshafts and install the special tool JLR-303-1625.

    Special Tool(s): JLR-303-1625

  7. CAUTION: Install and finger tighten bolts before final tightening in sequence illustrated.
    NOTE: Install a new gasket.
    G11309044Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the camshaft carrier and tighten the bolts in the illustrated sequence.

    Renew Part: Camshaft carrier gasket Quantity: 1  .

    Torque

    M8 x 80

    Stage 1: 15 Nm

    Stage 2: 45°

    M8 x 40: 25 Nm

  8. Install the breather vent module pipe.
  9. Install the cylinder head temperature sensor electrical connector bracket.

    Torque  : 12 Nm

  10. Install the wiring harness and connect the 2 electrical connectors.
  11. Install the Noise, Vibration and Harshness (NVH) material.
  12. G11309029Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the camshaft gear bolt finger tight at this stage.

    Special Tool(s): JLR-303-1625

    Renew Part: Camshaft sprocket bolt Quantity: 1  .

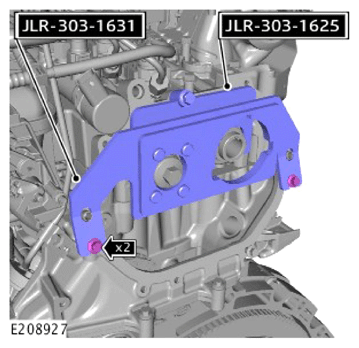

  13. CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.
    G13906091Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): JLR-303-1631

  14. G13901238Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully tighten the camshaft gear bolt and remove the special tool.

    Special Tool(s): JLR-303-1631

    Torque

    Stage 1: 80 Nm

    Stage 2: Loosen 90°

    Stage 3: 80 Nm

    Stage 4: 90°

  15. Install the upper timing chain.

    Refer to: UPPER TIMING CHAIN .

  16. Install the fuel injectors.

    Refer to: FUEL INJECTORS .

  17. Install the fuel rail.

    Refer to: FUEL RAIL .

  18. Connect the startup battery ground cable.

    Refer to: BATTERY AND CABLES - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL .
