Throttle Body (G1998242): Removal
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Be prepared to collect escaping coolant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the intake manifold assembly.
Refer to: INTAKE MANIFOLD (G2029661)

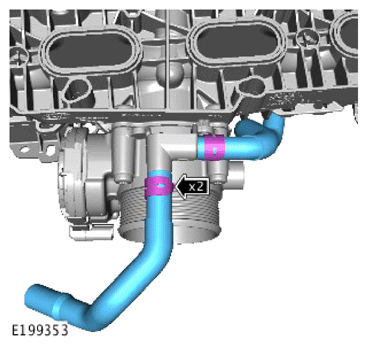

Remove the coolant hoses.

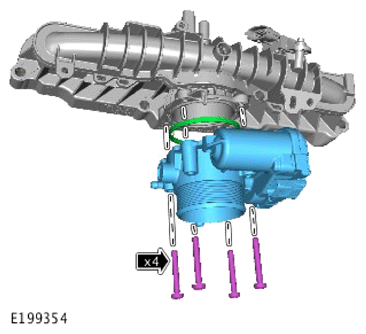

Remove the throttle body. Discard the seal.
