High Pressure Fuel Pump (G2043272): Notes
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

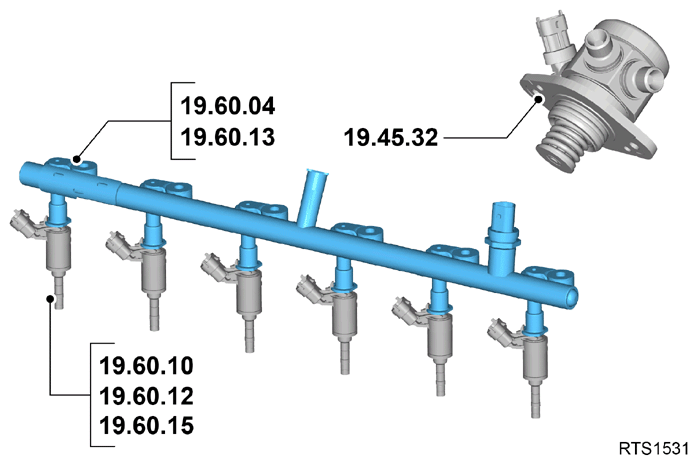

| 19.45.32 |
HIGH PRESSURE FUEL PUMP - ENGINE SET - RENEW |
3000 CC, INGENIUM PETROL |
2.00 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

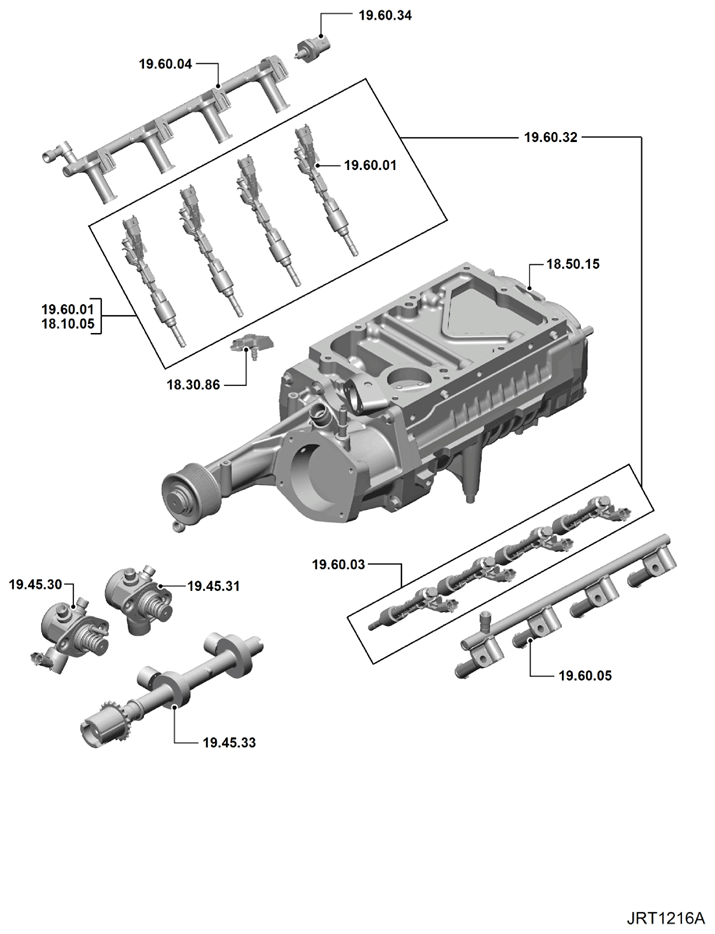

| 19.45.32 |
HIGH PRESSURE FUEL PUMP - ENGINE SET - RENEW |
5000 CC, AJ V8, SUPERCHARGED |
3.20 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

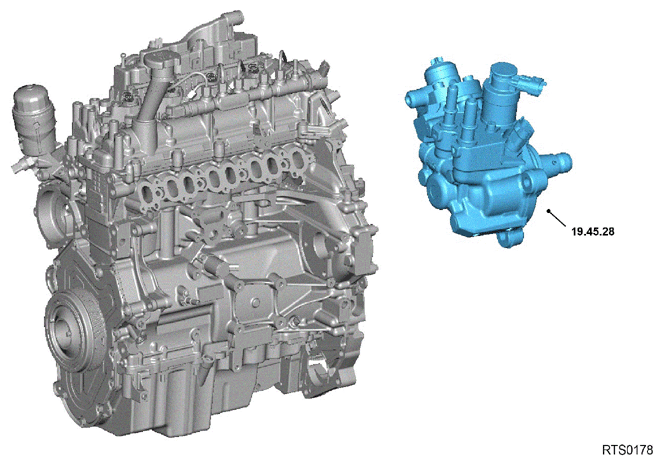

| 19.45.28 |
HIGH PRESSURE FUEL PUMP - RENEW |
2000 CC, AJ21, DIESEL |
1.80 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

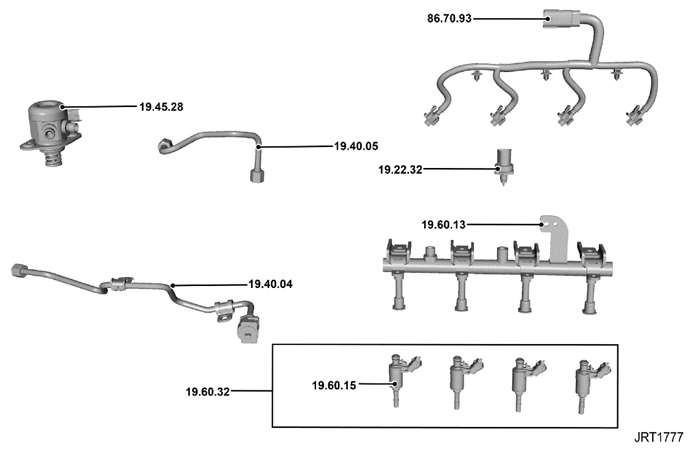

| 19.45.28 |
HIGH PRESSURE FUEL PUMP - RENEW |
2000 CC, INGENIUM PETROL |
0.60 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

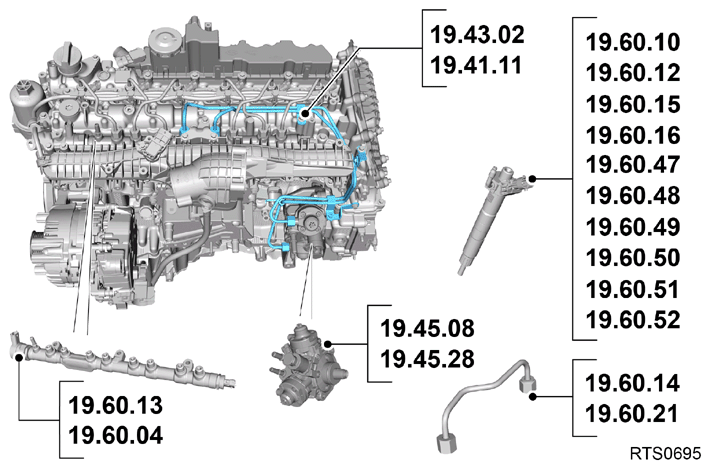

| 19.45.28 |
HIGH PRESSURE FUEL PUMP - RENEW |
3000 CC, INGENIUM DIESEL |
4.50 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
PARTS DESCRIPTION
| STEP |
PART NAME |
QUANTITY |
| Installation Step 2 |
Fuel pump O-ring seal |
1 |
| Installation Step 3 |
High pressure fuel pump retaining bolts |
1 |
