Fuel Injectors (G1998238): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Residual pressure may still be present in the fuel system when disconnecting a fuel line. Make sure to cover the fuel line connection with a lint free cloth to capture any escaping fuel.
Be prepared to collect escaping fuel.

CAUTION: Extreme cleanliness must be exercised when handling these components. Make sure that all tools and the surrounding area is clean before commencing work.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Always follow the fuel system health and safety precautions, when carrying out any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Release the fuel pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G2623442)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

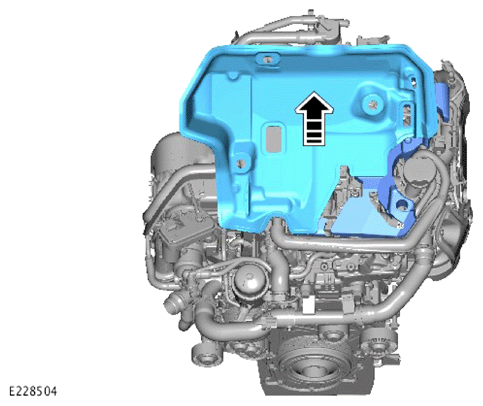

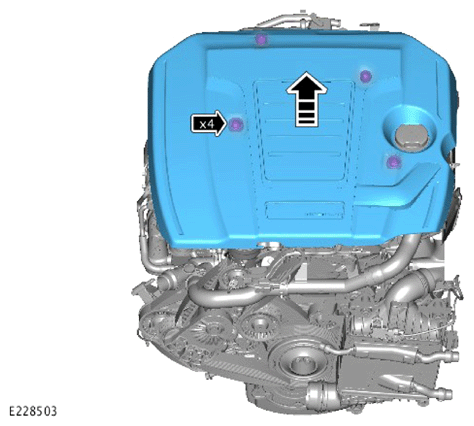

Remove the engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

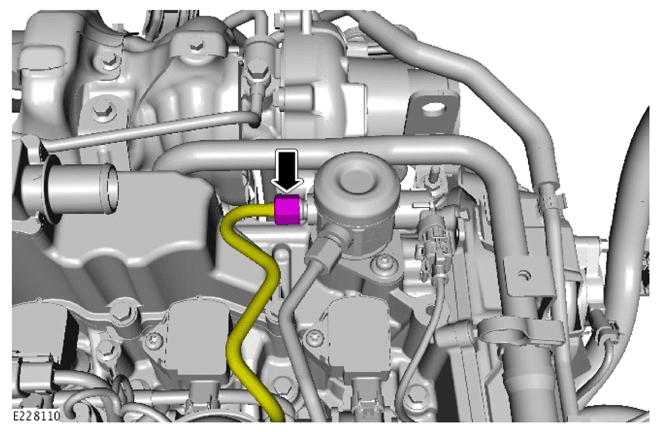

Disconnect the breather.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

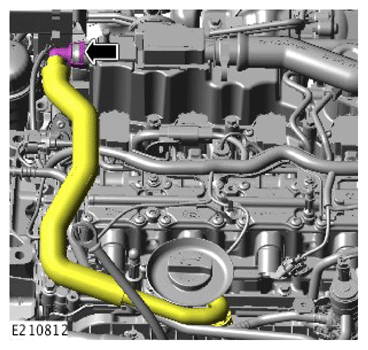

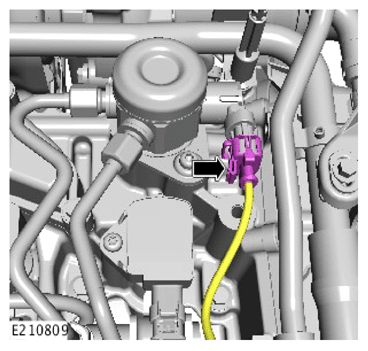

Disconnect the High Pressure (HP) fuel pump electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

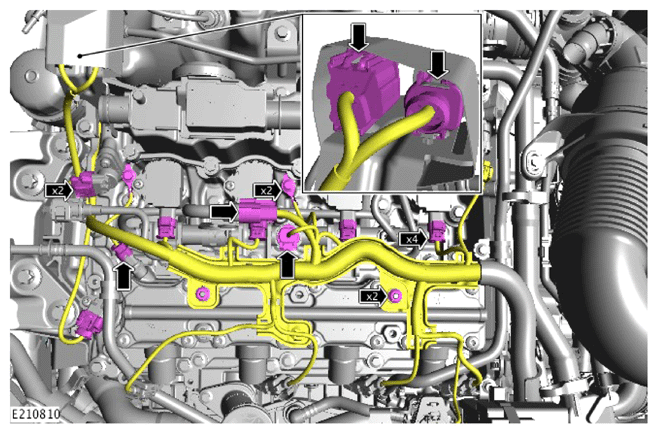

Disconnect and reposition the engine wiring harness.
Clean all the fuel line unions and the surrounding area before working on the fuel system.
WARNING:
- Residual pressure may still be present in the fuel system when disconnecting a fuel line. Make sure to cover the fuel line connection with a lint free cloth to capture any escaping fuel.
- Be prepared to collect escaping fuel.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Carefully release the HP fuel line. Wait until the residual pressure is fully released.

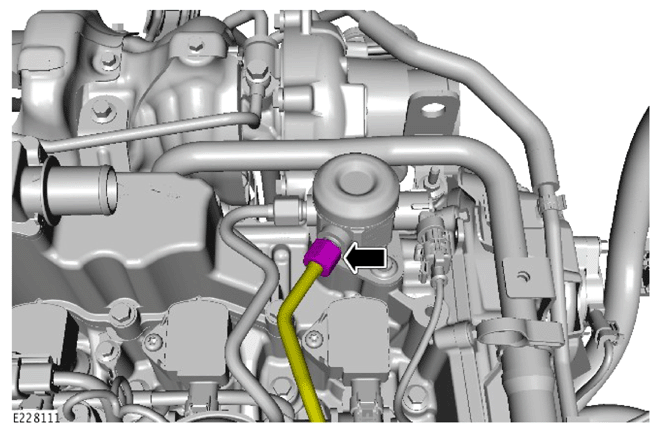

- Disconnect the HP fuel line from the high pressure pump.
WARNING:
- Residual pressure may still be present in the fuel system when disconnecting a fuel line. Make sure to cover the fuel line connection with a lint free cloth to capture any escaping fuel.
- Be prepared to collect escaping fuel.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Carefully release the Low Pressure (LP) fuel line. Wait until the residual pressure is fully released.
- Disconnect the LP fuel line from the high pressure pump.
WARNING:
- Residual pressure may still be present in the fuel system when disconnecting a fuel line. Make sure to cover the fuel line connection with a lint free cloth to capture any escaping fuel.
- Be prepared to collect escaping fuel.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

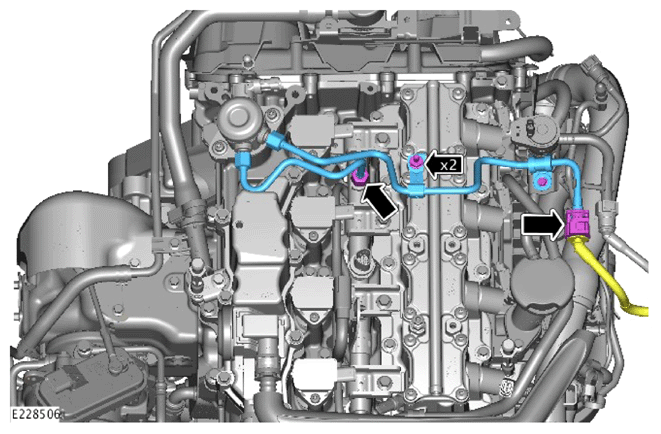

- Disconnect the fuel supply line connector.
- Remove the 2 fuel lines.
Remove the spark plugs.
Refer to: SPARK PLUGS (G1998302)
CAUTION: Discard the clips if damaged or worn.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

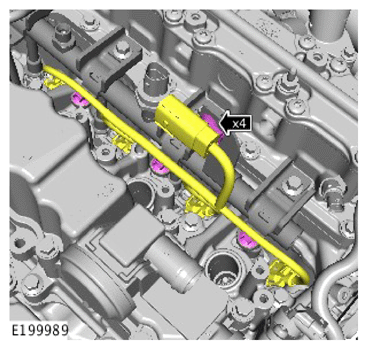

Release the fuel injector wiring harness.
WARNING: Be prepared to collect escaping fuel.
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Loosen each of the bolts 1 turn at a time until the spring tension is fully released.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

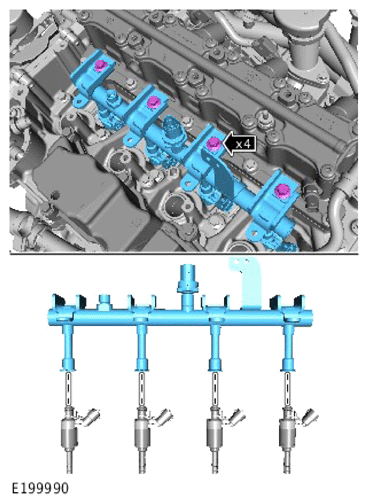

Remove the fuel rail.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

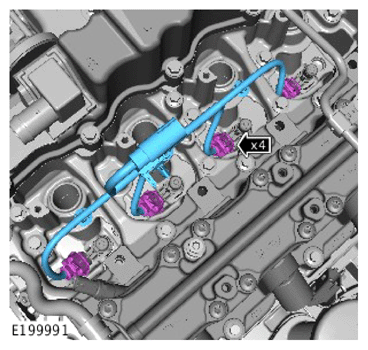

Remove the fuel injector wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

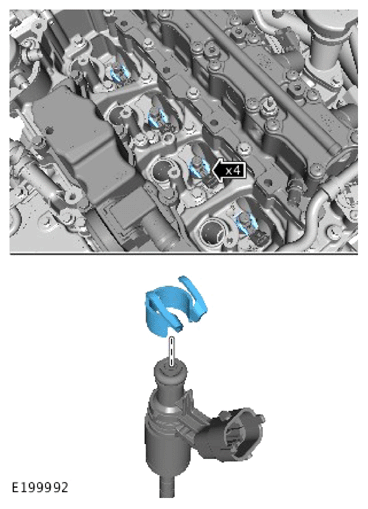

Remove and discard the 4 fuel injector spring clamps.
CAUTION: Make sure that the special tool is correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

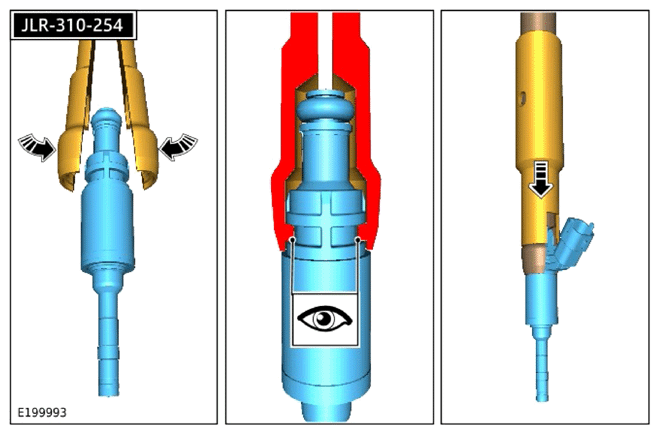

Install the special tool to the fuel injector.

Special Tool(s): JLR-310-254
CAUTION: Make sure that the special tools are held square to the fuel injector during removal.

NOTE: Make sure that the fuel injector is removed smoothly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

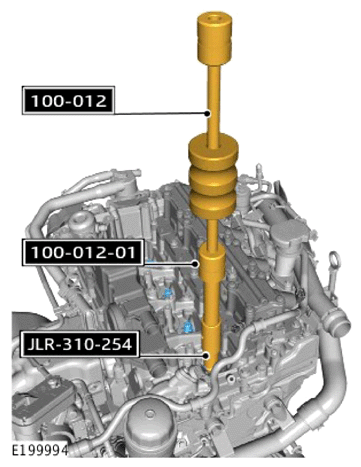

Using the special tools, carefully remove the fuel injector.

Special Tool(s): 100-012 , 100-012-01 , JLR-310-254
Remove the special tools from the fuel injector.
CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the O-ring seal and washer.
CAUTION:
- Do not use a knife to remove the Teflon™ seal as damage could occur to the fuel injector.
- Pinch the Teflon™ seal to allow the tool to cut the Teflon™ seal without damaging the fuel injector.
- Do not cut the Teflon seal too deep as damage could occur to the fuel injector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

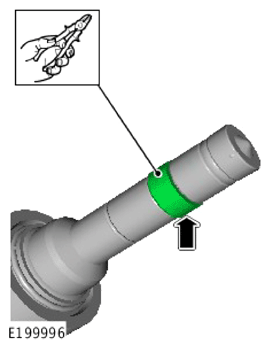

Remove and discard the Teflon™ seal.
Repeat removal steps 18 to 22 for the remaining fuel injectors.
