Fuel Injectors (G1998238): Notes
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

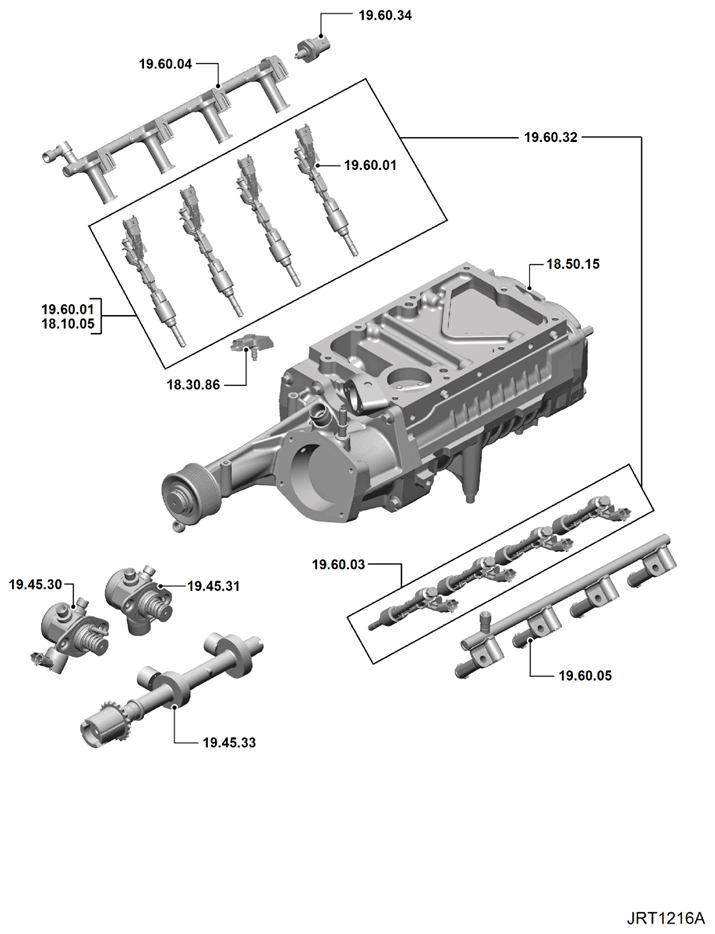

| 19.60.01 |
INJECTOR - RIGHT HAND BANK SET - RENEW |
5000 CC, AJ V8, SUPERCHARGED |
2.20 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 19.60.03 |
INJECTOR - LEFT HAND BANK SET - RENEW |
5000 CC, AJ V8, SUPERCHARGED |
2.10 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

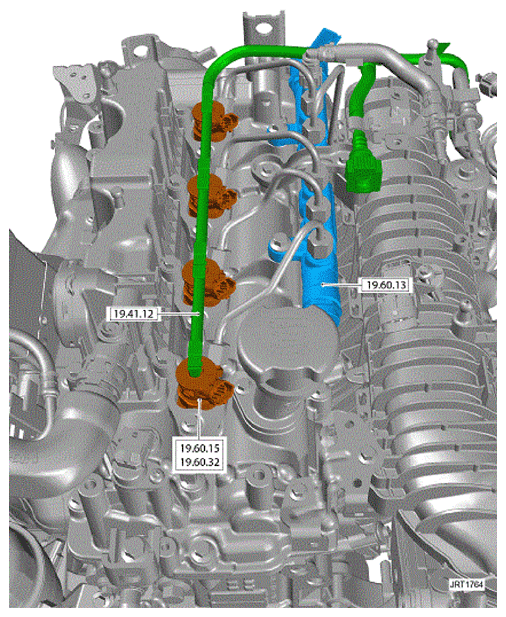

| 19.60.15 |
INJECTOR - RENEW |
2000 CC, AJ21, DIESEL |
0.30 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

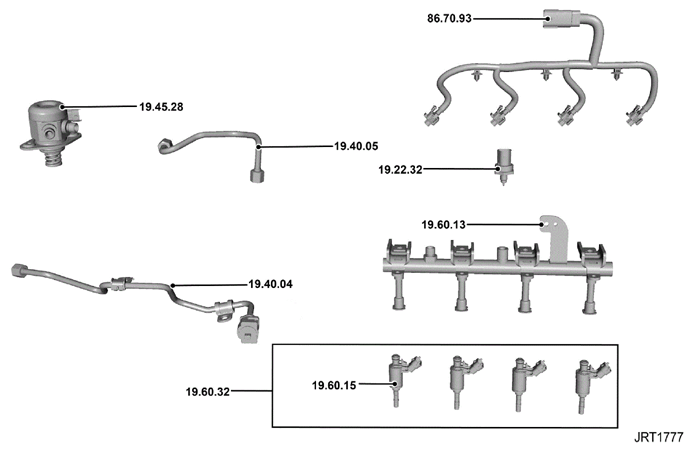

| 19.60.15 |
INJECTOR - RENEW |
2000 CC, INGENIUM PETROL |
1.20 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 19.60.32 |
INJECTOR - ENGINE SET - RENEW |
2000 CC, AJ21, DIESEL |
0.60 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 19.60.32 |
INJECTOR - ENGINE SET - RENEW |
2000 CC, INGENIUM PETROL |
1.20 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

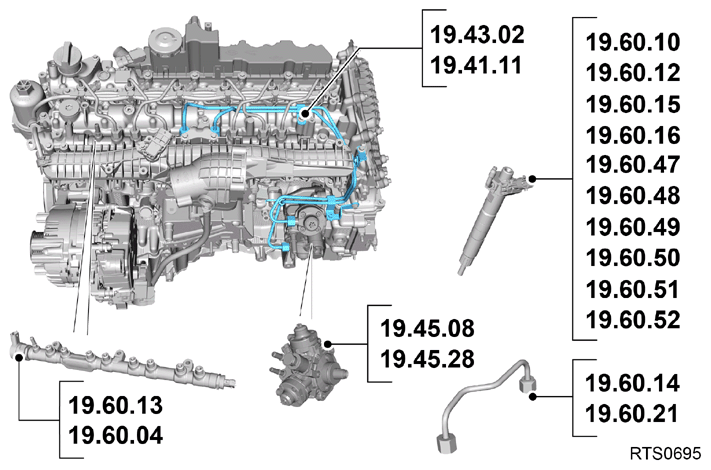

| 19.60.12 |
INJECTORS - SET - RENEW |
3000 CC, INGENIUM DIESEL |
1.60 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

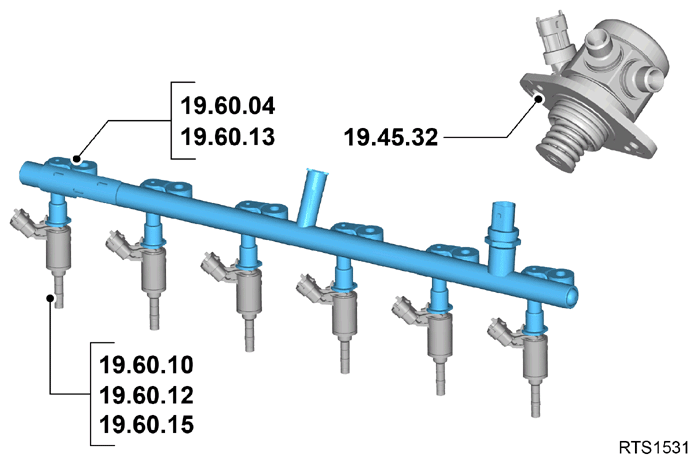

| 19.60.12 |
INJECTORS - SET - RENEW |
3000 CC, INGENIUM PETROL |
2.80 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
