Component Location
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

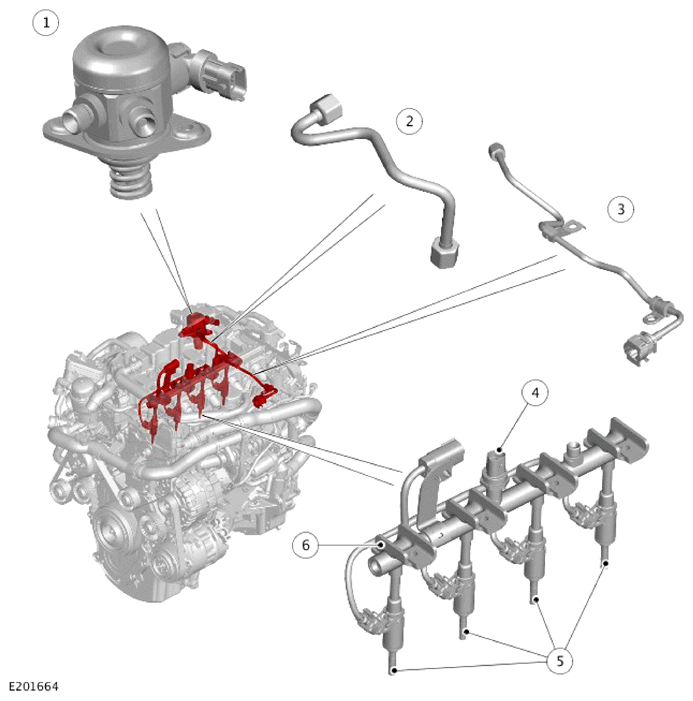

| ITEM |
DESCRIPTION |
| 1 |
High Pressure (HP) fuel pump |
| 2 |
High Pressure (HP) fuel line |
| 3 |
Low Pressure (LP) fuel pipe |
| 4 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
| 5 |
Fuel injector (4 off) |
| 6 |
Fuel rail |
