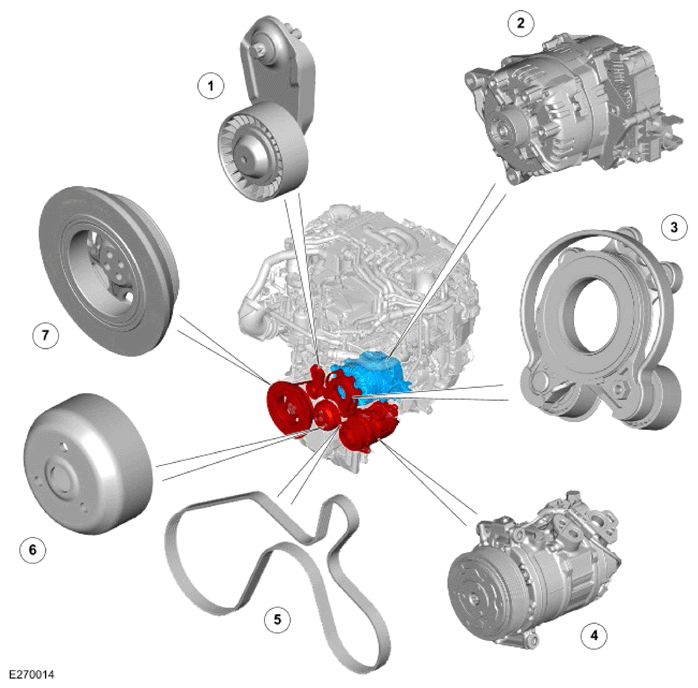

Component Location
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Idler pulley |
| 2 |
Belt Integrated Starter Generator (BISG) |
| 3 |
BISG
drive belt tensioner |
| 4 |
Air Conditioning (A/C) compressor |
| 5 |
BISG
drive belt |
| 6 |
Engine coolant pump pulley |
| 7 |
Crankshaft pulley |
