Component Torque Location

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

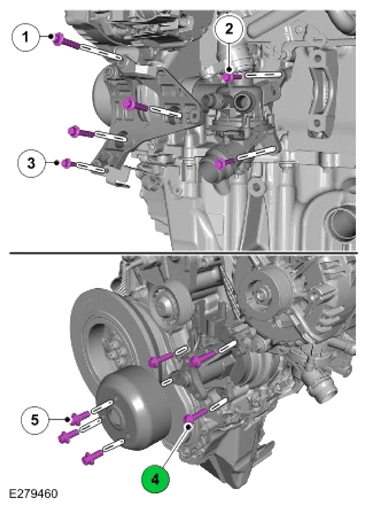

	DESCRIPTION	NM	LB-FT	LB-IN
1	Air Conditioning (A/C) compressor bracket bolt	25	18	-
2	Electric thermostat bolt	12	9	-
3	A/C pipe bracket bolt	9	-	80
4	Variable coolant pump bolt	25	18	-
5	Variable coolant pump pulley bolt	25	18	-

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

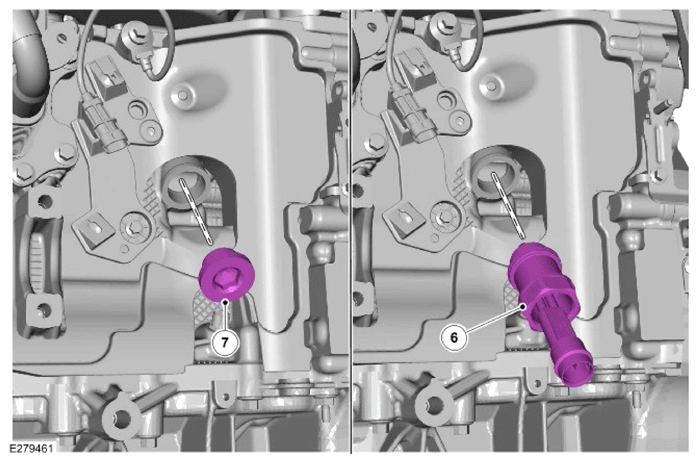

6	Block heater	55	41	-
7	Engine drain plug	45	33	-

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

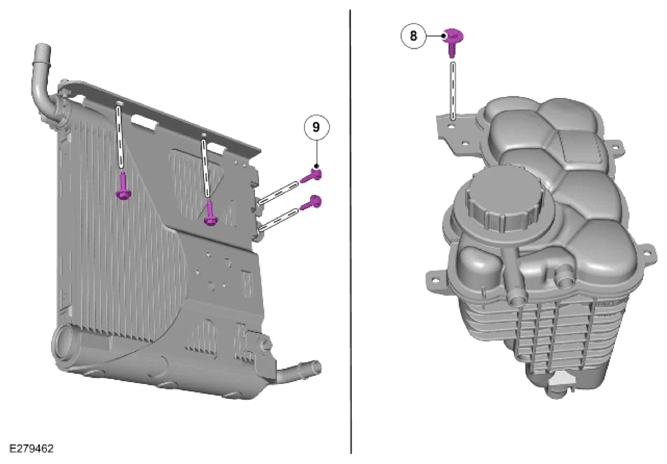

8	Coolant expansion tank bolt	2.8	-	25
9	Auxiliary radiator bolt	9	-	80

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

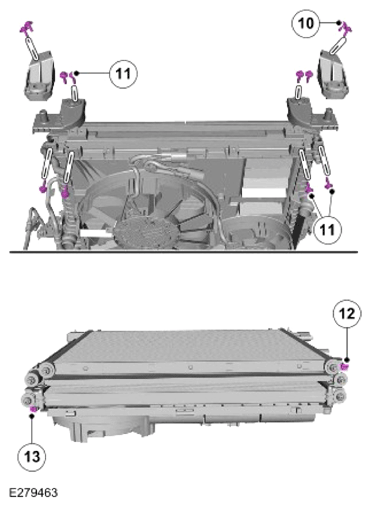

10	Cooling module upper mounting bolt	7	-	62
11	Radiator upper mounting bracket bolt	9	-	80
12	Charge air radiator drain plug	2	-	18
13	Radiator drain plug	2	-	18

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

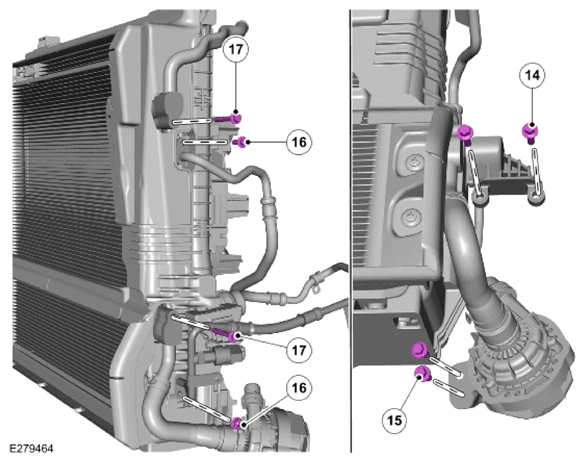

14	Cooling module lower mounting bracket bolt	9	-	80
15	Charge air cooler coolant pump bolt	9	-	80
16	A/C pipes nut and bolt	20	15	-
17	Coolant pipe to the charge air radiator bolt	9	-	80

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

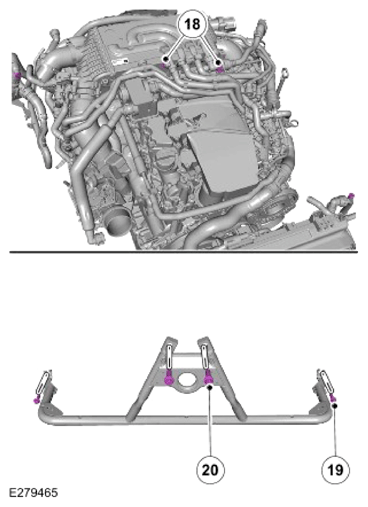

18	Bleed screw	2	-	18
19	Cooling module protector M10 bolt	45	33	-
20	Cooling module protector M12 bolt	90	66	-

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

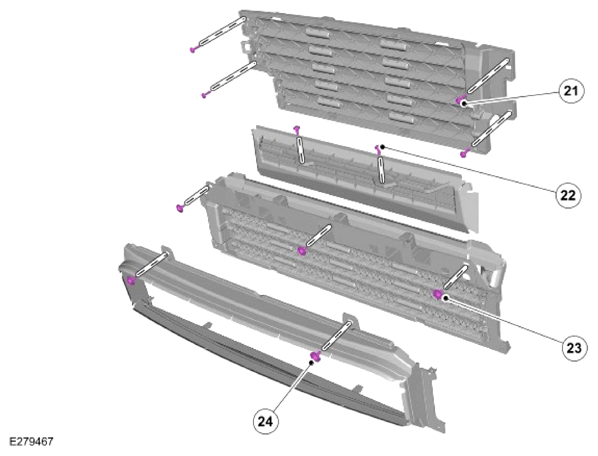

21	Upper active grille air shutter screw	7	-	62
22	Center air deflector bolt	7	-	62
23	Lower active grille air shutter screw	7	-	62
24	Lower air deflector screw	7	-	62
