Radiator (G2497451): Removal
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING .
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
- Remove the cooling module.
Refer to: COOLING MODULE .

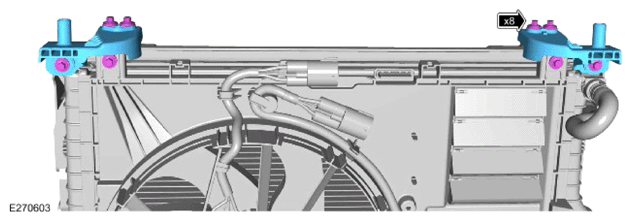

- Remove the 8 bolts.
- Remove the 2 radiator upper mounting brackets.

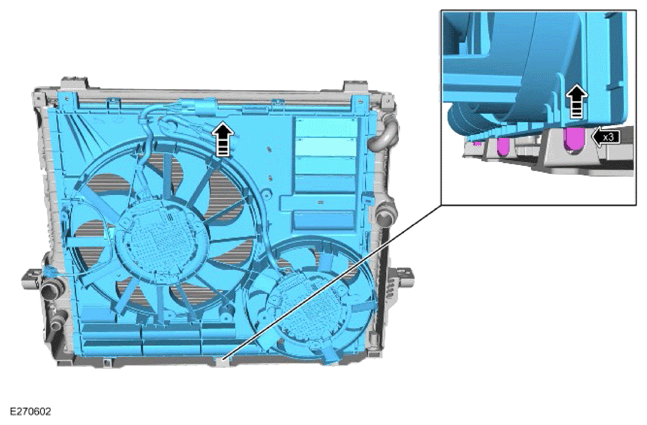

Remove the electric cooling fan and shroud.

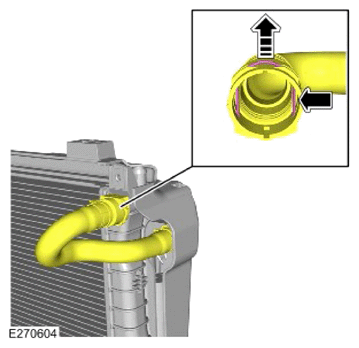

Disconnect the coolant hose connector from the radiator.

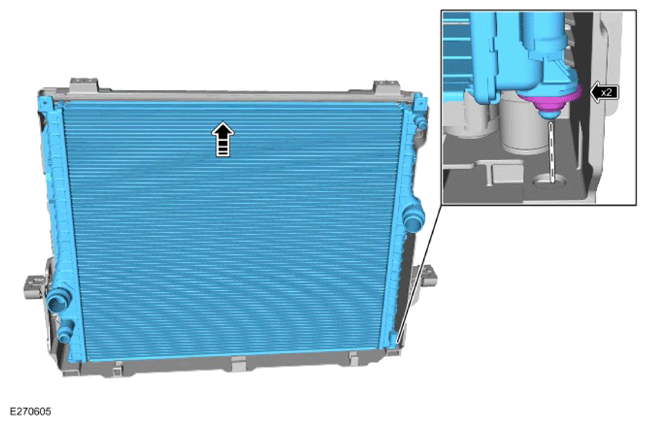

Remove the radiator.
