Electric Coolant Pump (G2422865): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING -- F-PACE/X761 .
Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2497432) .

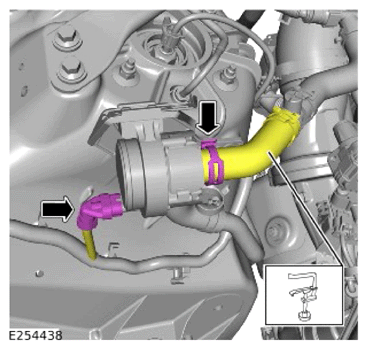

NOTE: Clamp the coolant hose to minimize coolant loss.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the electric coolant pump.
- Disconnect the upper coolant hose from the electric coolant pump.

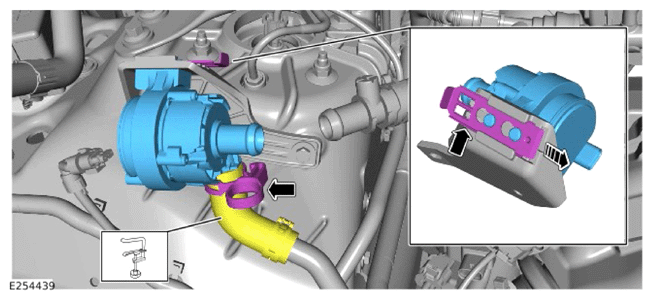

NOTE: Clamp the coolant hose to minimize coolant loss.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the lower coolant hose from the electric coolant pump.
- Reposition the clip as illustrated.
- Remove the electric coolant pump.
