Cooling Module (G2497452): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Make sure the engine cooling system is cool prior to doing this procedure.
CAUTION:
  • Engine coolant will damage the paint finished surfaces. If spilled, immediately remove the coolant and clean the area with water.
  • The desiccant bag need only be changed under the following circumstances: There is dirt in the refrigerant circuit (For example: compressor seizure), the system is leaking and refrigerant has been lost to atmosphere, or the refrigerant circuit has been open more than 24 hours, due to repair.
  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2-post lift.

    Refer to: LIFTING .

  2. Disconnect the 12V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  3. Partially drain the engine cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2497432)  .

  4. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL .

  5. Remove the engine cover.

    Refer to: ENGINE COVER - INGENIUM I6 3.0L DIESEL .

  6. Evacuate the Air Conditioning (A/C) system.

    Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .

  7. With assistance, remove the front bumper.

    Refer to: FRONT ARMATURE - INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL .

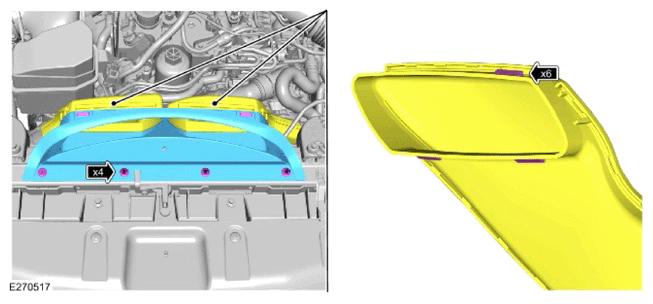

  8. G15620692Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 dirty air ducts at the 6 clips.
    • Remove the 4 fasteners.
    • Remove the air deflector.

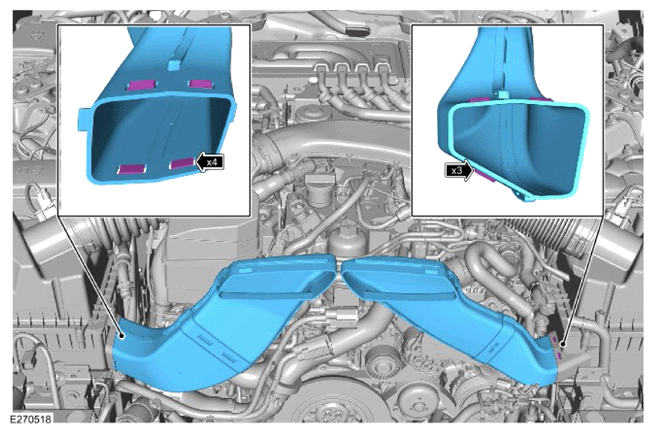

  9. G15620693Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 7 clips.
    • Remove the 2 dirty air ducts.
  10. CAUTION: Take extra care not to damage the component.

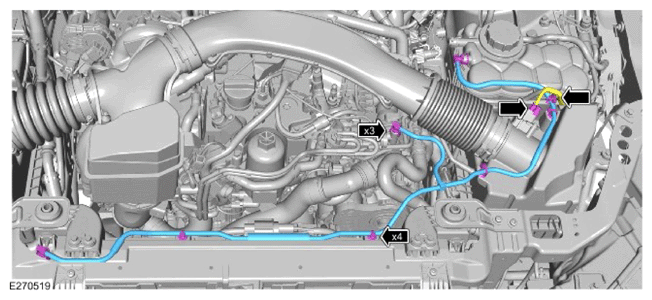

    G15620694Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the wiring harness clip.
    • Disconnect the 3 coolant pipe connectors.
    • Release the 4 pipe clips.
    • Remove the breather pipe.

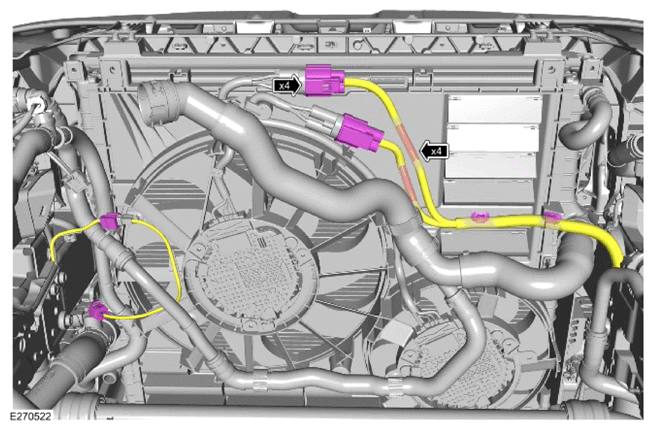

  11. G15620695Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 4 electrical connectors.
    • Release the 4 wiring harness clips.

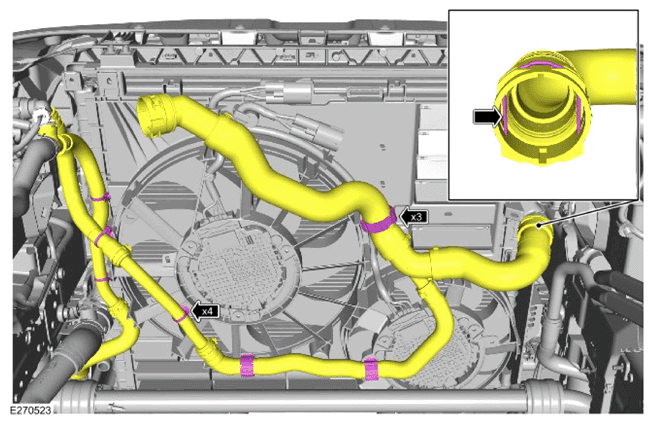

  12. G15620696Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the coolant hose connector.
    • Release the 7 coolant hose clips.
  13. NOTE: Vehicles with right auxiliary radiator.

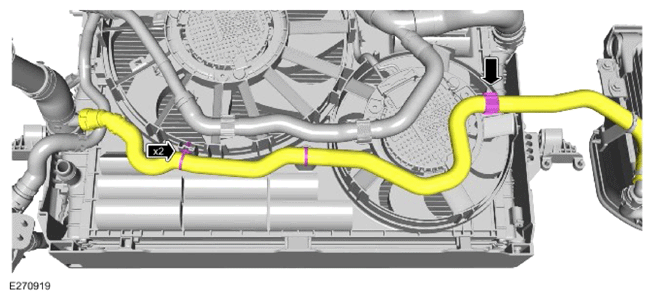

    G15620697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 3 coolant hose clips.

  14. CAUTION: Be prepared to collect escaping coolant.

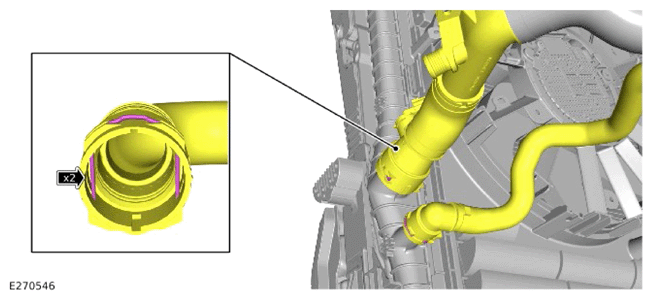

    G15620698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 coolant hose connectors.

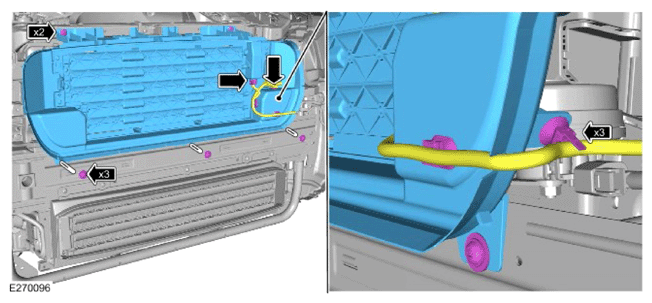

  15. G15620699Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the electrical connector clip.
    • Release the 3 wiring harness clips.
    • Remove the 3 screws and 2 clips.
    • Remove the upper active grille air shutter.
  16. NOTE: Take extra care when releasing the clips.

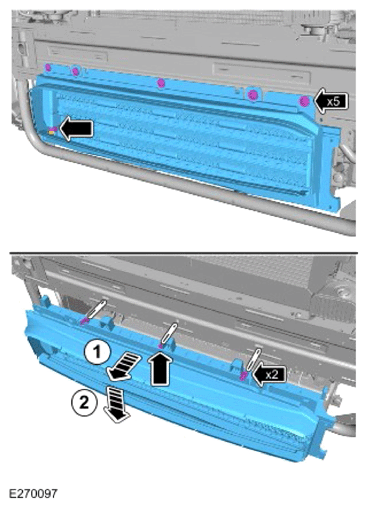

    G15620700Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the 5 screws.
    • Release the 2 clips.
    • Remove the lower active grille air shutter as illustrated.

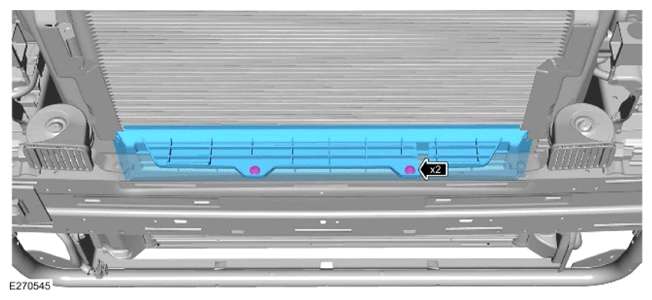

  17. G15620701Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the air deflector.

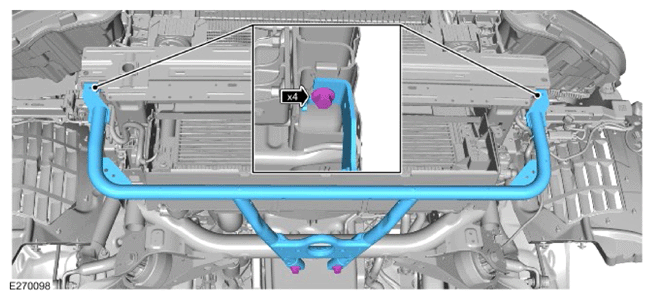

  18. G15620702Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the cooling module protector.

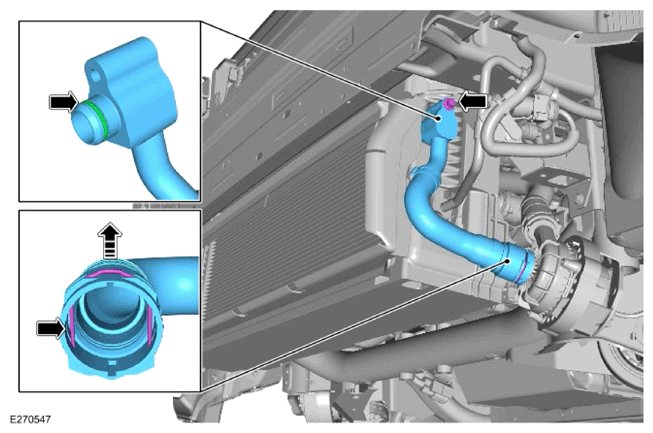

  19. G15620703Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Release the coolant hose from the charge air radiator.
    • Disconnect the coolant hose connector from the charge air radiator coolant pump.
    • Remove the coolant hose.
    • Remove and discard the O-ring seal.

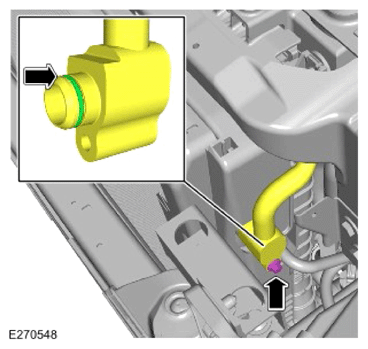

  20. G15620704Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Release the coolant pipe from the charge air radiator.
    • Remove and discard the O-ring seal.

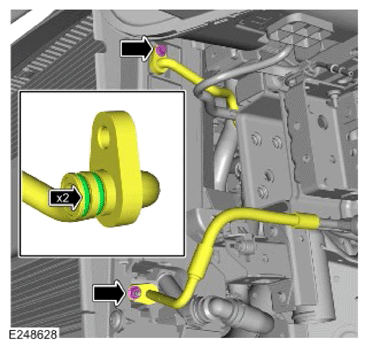

  21. G15620705Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the nut.
    • Release the 2 A/C  pipes from the A/C  condenser.
    • Remove and discard the 4 O-ring seals.

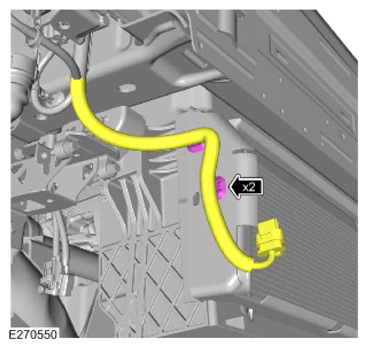

  22. G15620706Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 wiring harness clips.

  23. CAUTION: Make sure that the cooling module is properly supported before removing the bolts.

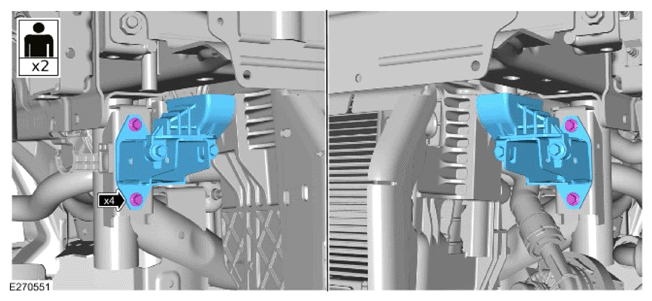

    G15620707Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the 2 cooling module lower mounting brackets.

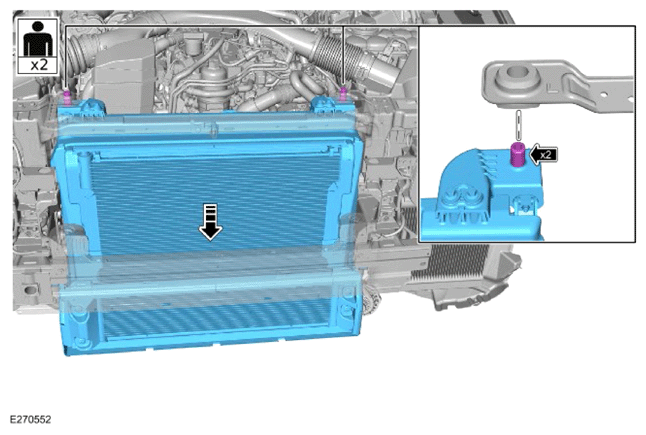

  24. G15620708Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    With assistance, remove the cooling module.
