Cooling Module (G2497452): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

- With assistance, install the cooling module.
- Install the 2 cooling module lower mounting brackets.
- Install and tighten the 4 bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

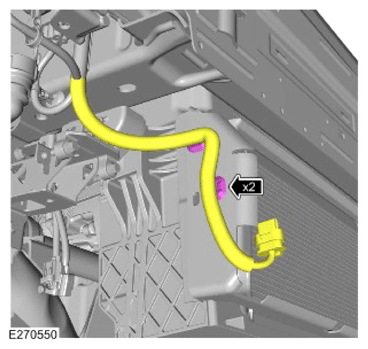

- Install the 2 wiring harness clips.
CAUTION:
- Make sure that new O-ring seals are installed.
- Lubricate the new seals with clean refrigerant oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

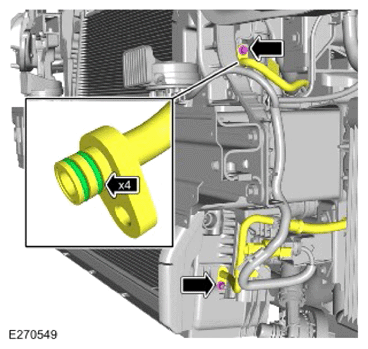

- Lubricate and install the 4 new O-ring seals to the A/C pipes.
  Renew Part: Air conditioning pipes to condenser O-ring seals Quantity: 4 .
- Install the 2 A/C pipes to the A/C condenser.
- Install and tighten the nut and bolt.
  Torque : 20 Nm
CAUTION:
- Make sure that new O-ring seals are installed.
- Lubricate the new seals with clean coolant fluid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

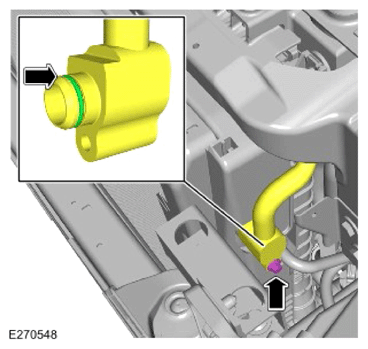

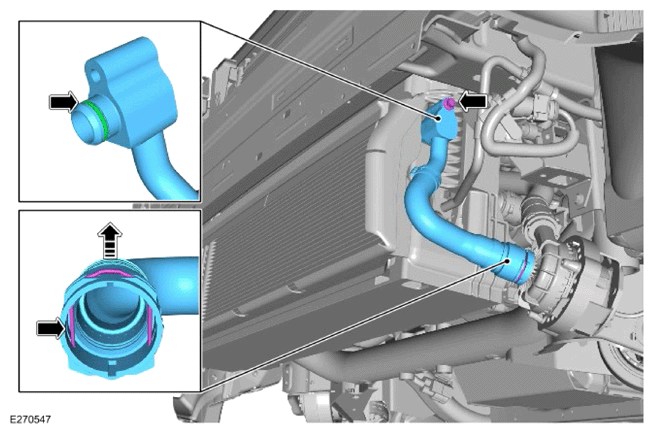

- Install the new O-ring seal.
  Renew Part: Charge air radiator pipe O-ring seal Quantity: 1 .
- Install the coolant hose to the charge air radiator.
- Install and tighten the bolt.
  Torque : 9 Nm
CAUTION:
- Make sure that new O-ring seals are installed.
- Lubricate the new seals with clean coolant fluid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

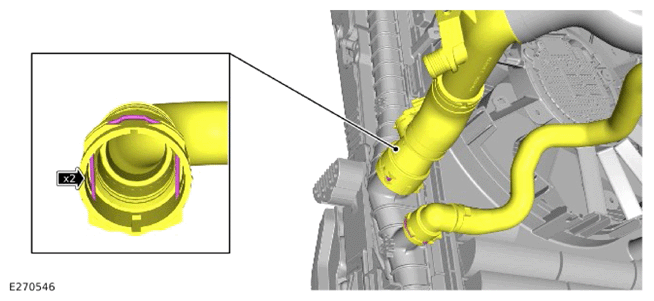

- Install the new O-ring seal.
  Renew Part: Charge air radiator pipe O-ring seal Quantity: 1 .
- Install the coolant hose to the charge air radiator.
- Install and tighten the bolt.
  Torque : 9 Nm
- Connect the coolant hose connector to the charge air radiator coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

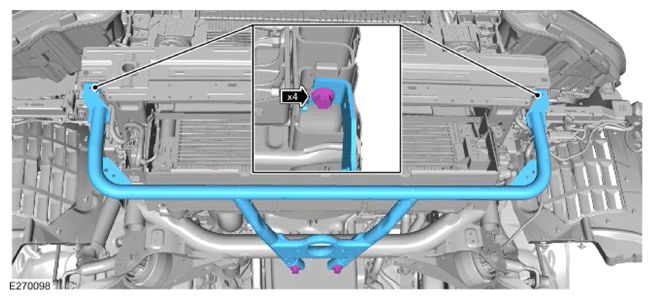

- Install the cooling module protector.
- Install and tighten the 4 bolts.
  Torque

  M12 bolt: 90 Nm

  M10 bolt: 45 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

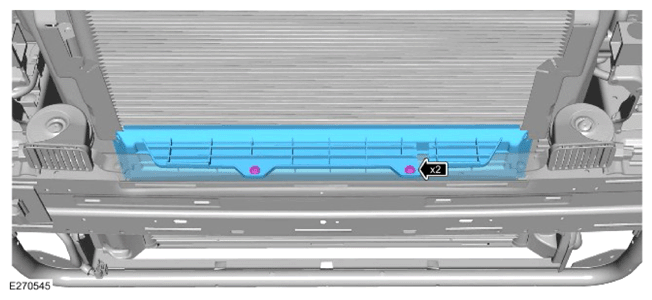

- Install the air deflector.
- Install and tighten the 2 bolts.
  Torque : 7 Nm
- Install the lower active grille air shutter at the 2 clips.
- Install and tighten the 5 screws.
  Torque : 7 Nm
- Connect the electrical connector to the lower active grille air shutter.
- Install the upper active grille air shutter.
- Install the 2 clips.
- Install and tighten the 3 screws.
  Torque : 7 Nm
- Install the 3 wiring harness clips and the electrical connector clip.
- Connect the electrical connector to the upper active grille air shutter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 2 coolant hose connectors.
NOTE: Vehicles with right auxiliary radiator.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

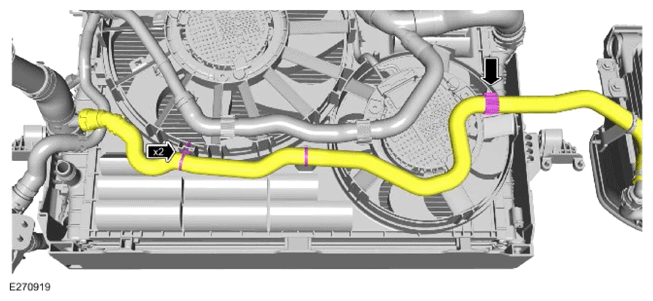

Install the 3 coolant hose clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

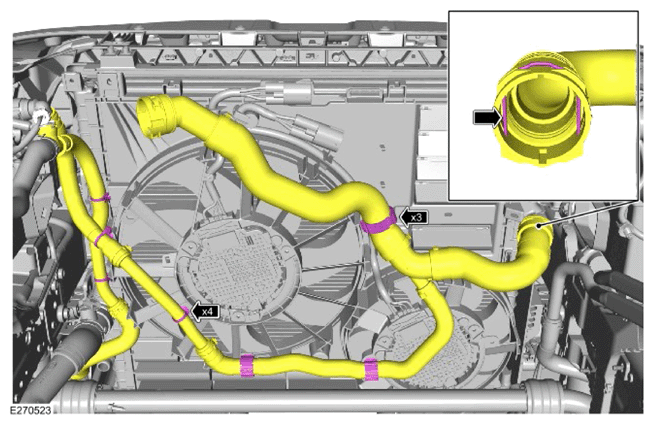

- Install the 7 coolant hose clips.
- Connect the coolant hose connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

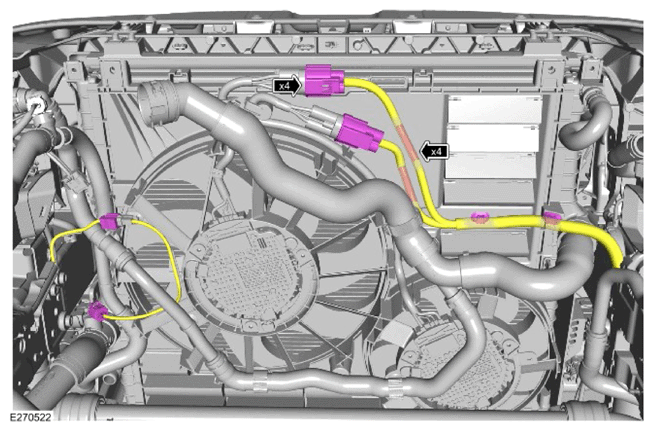

- Install the 4 wiring harness clips.
- Connect the 4 electrical connectors.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

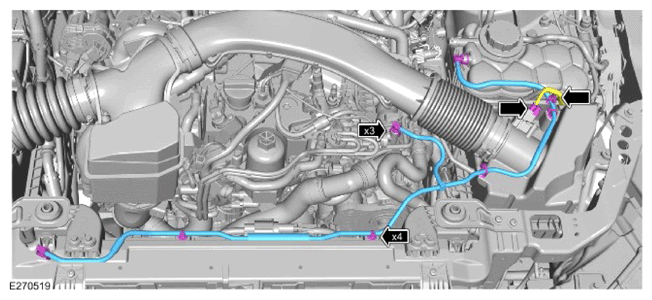

- Install the breather pipe.
- Install the 4 pipe clips.
- Connect the 3 coolant pipe connectors.
- Install the wiring harness clip.
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

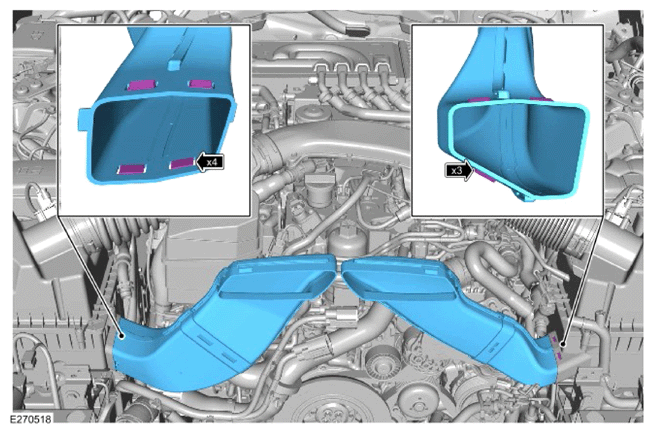

Install the 2 dirty air ducts at the 7 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

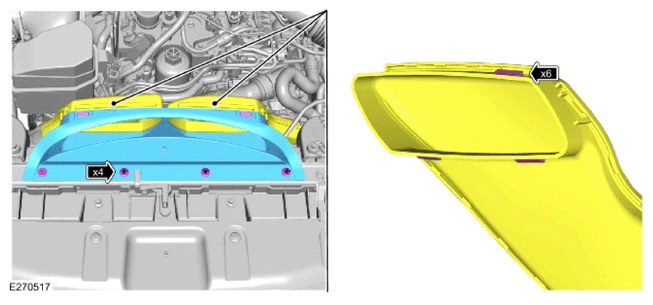

- Install the air deflector.
- Install the 4 fasteners.
- Install the 2 dirty air ducts at the 6 clips.
With assistance, install the front bumper.
Refer to: FRONT ARMATURE - INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL .
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL .
Fill the engine cooling system with the correct amount of coolant fluid.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2497432) .
Recharge the A/C system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I6 3.0L DIESEL .
Connect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
