Coolant Level Sensor (G2412917): Removal
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the coolant expansion tank.
Refer to: COOLANT EXPANSION TANK (G2497448) .
-
CAUTION: Do not use excessive force to remove the coolant level sensor. Failure to follow this instruction may result in damage to the vehicle.

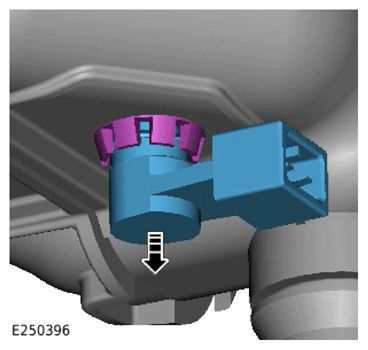

Remove the coolant level sensor.
