Charge Air Cooler Inlet Pipe (G2323052): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING .
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I6 3.0L PETROL .
Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

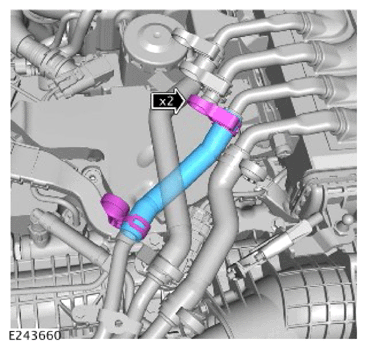

- Release the 2 clips.
- Remove the charge air cooler inlet pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

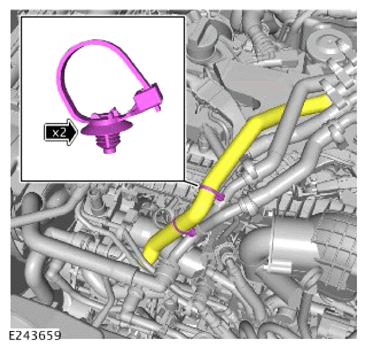

- Carefully release the 2 clips.
- Move aside the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

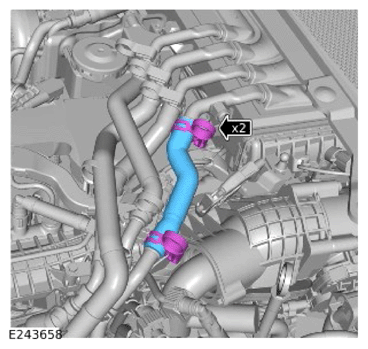

- Release the 2 clips.
- Remove the charge air cooler inlet pipe.
