Block Heater (G2344460): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The block heater threads must be started by hand. Failure to follow this instruction may result in damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

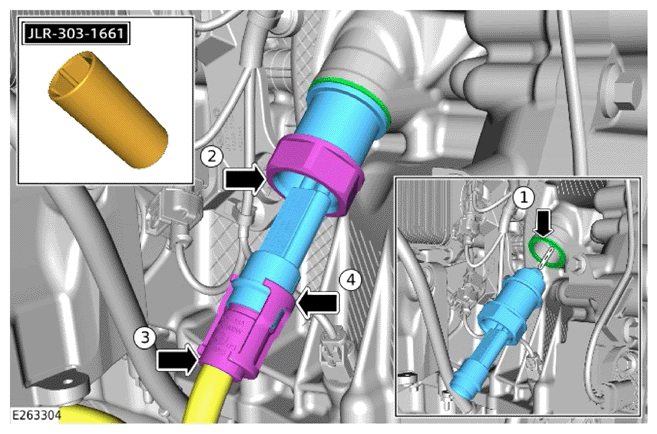

1. Install the new seal.
2. Install the block heater.
3. Use the special tool to tighten the block heater.
  Special Tool(s): JLR-303-1661

  Torque : 55 Nm
4. Connect the electrical connector.
5. Install the clip.
Install the front left wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
Install the transmission undershield.
Refer to: ENGINE UNDERSHIELD - V8 S/C 5.0L PETROL (G2263566) .
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2497432) .
