Auxiliary Radiator (G2497446): Removal
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Make sure the engine cooling system is cool prior to doing this procedure.
CAUTION:
Engine coolant will damage the paint finished surfaces. If spilled, immediately remove the coolant and clean the area with water.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
- Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING .
- Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
- Remove the front left wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
-
CAUTION: Be prepared to collect escaping coolant.

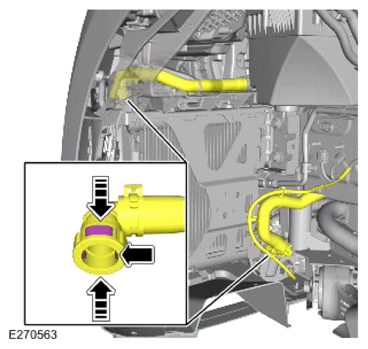

Disconnect the 2 coolant hoses.

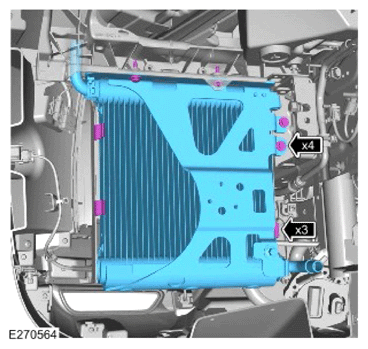

- Remove the 4 bolts.
- Release the 3 clips.
- Remove the auxiliary radiator.
