Charge Air Cooler
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

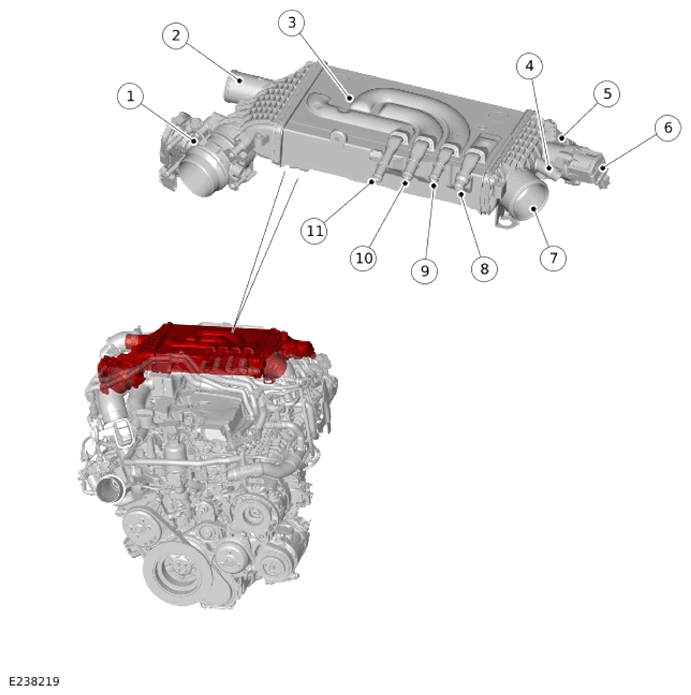

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric supercharger inlet |
| 2 | Air inlet |
| 3 | Charge air cooler |
| 4 | Air intake system hose connection |
| 5 | Charge air pressure and temperature sensor |
| 6 | Compressor Bypass Valve (CBV) |
| 7 | Electric throttle hose connection |
| 8 | Coolant inlet from low temperature radiator |
| 9 | Coolant outlet to low temperature radiator |
| 10 | Coolant inlet from engine |
| 11 | Coolant outlet to main radiator |
The charge air cooler is used to reduce the intake air temperature which increases the density of the intake air delivered to the combustion chambers. The charge air cooler has a stand alone cooling system with its own charge air radiator, charge air coolant pump and hoses.
For additional information, Refer to: DESCRIPTION AND OPERATION .
