Component Location - 1 Of 3
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

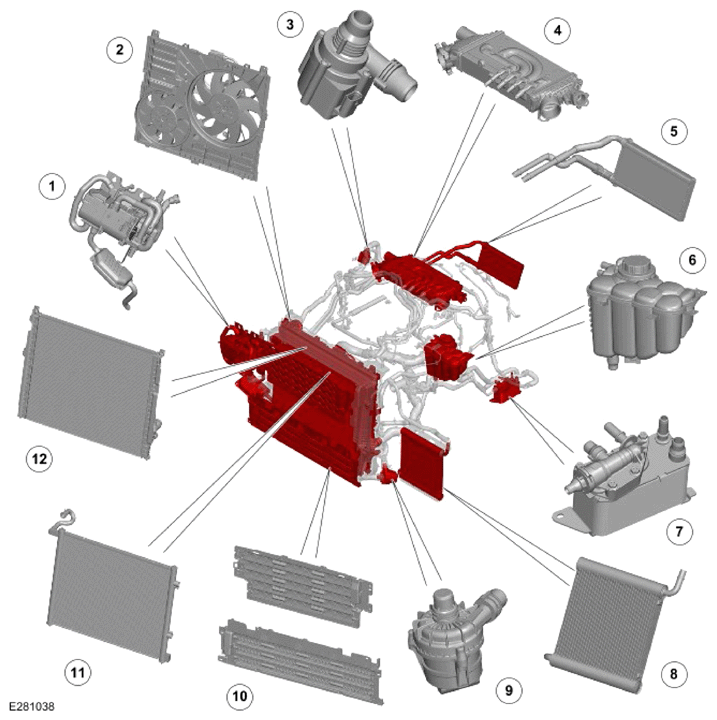

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel Fired Booster Heater (FFBH) - If equipped |
| 2 | Electric cooling fan shroud |
| 3 | Auxiliary coolant pump |
| 4 | Charge air cooler |
| 5 | Heater core |
| 6 | Coolant expansion tank |
| 7 | Automatic Transmission Fluid (ATF) cooler |
| 8 | Auxiliary radiator |
| 9 | Charge air coolant pump |
| 10 | Active grille air shutter |
| 11 | Charge air radiator |
| 12 | Radiator |
