Thermostat Housing (G1580412): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
  3. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
  4. Refer to: LEFT AIR CLEANER OUTLET PIPE .

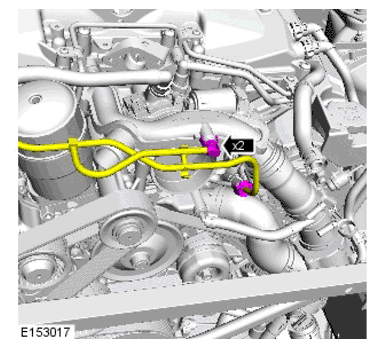

  5. G11300218Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. G11301176Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. G11285417Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  8. NOTE: The retaining clips cannot be removed from the pipe.
    G11301430Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. G11301431Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm
