Rear Coolant Manifold (G2368733): Removal

WARNING: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING (G1853015) .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL (G2264506) .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

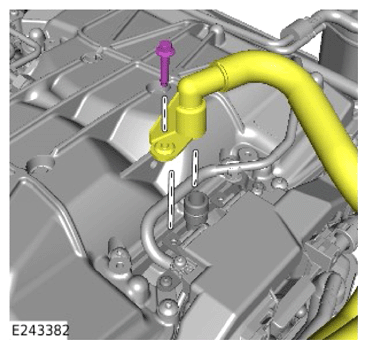

- Remove the bolt.
- Disconnect the symposer outlet hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

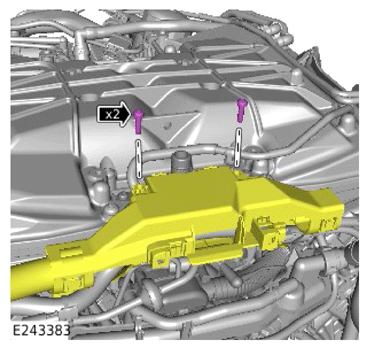

- Remove the 2 bolts.
- Reposition the wiring harness to get access to the rear coolant manifold.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

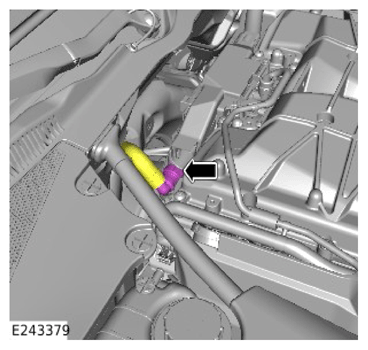

Disconnect the rear coolant manifold right hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

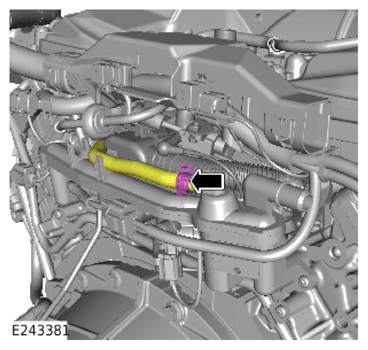

- Release the coolant hose clip.
- Disconnect the rear coolant manifold left hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

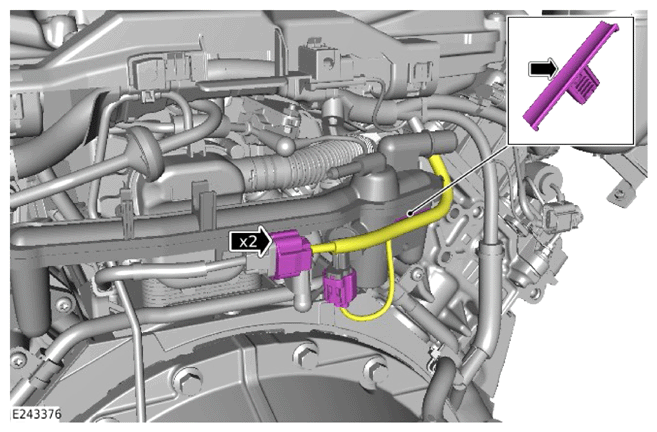

- Disconnect the 2 electrical connectors.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

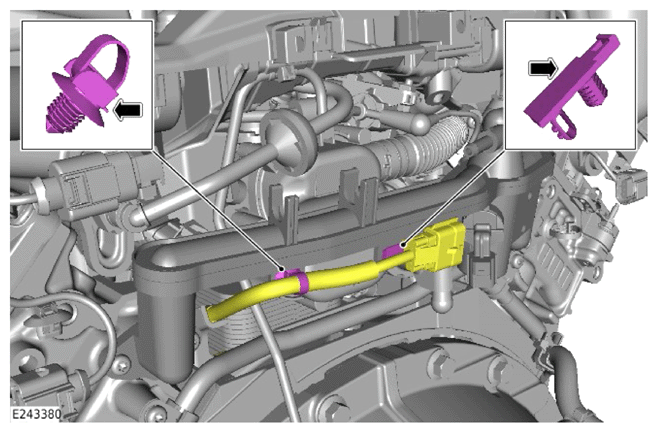

Release the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

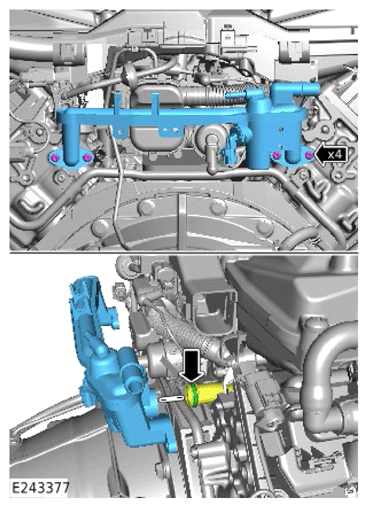

- Remove the 4 bolts.
- Release the rear coolant manifold from the coolant pump intake pipe.
- Remove the rear coolant manifold.
- Inspect the O-ring seal. Remove and discard the O-ring seal if damaged or worn.
NOTE: This step is only required if new components are not installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 2 O-ring seals.
