Radiator (G1580411): Removal

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1898506) .
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Refer to: LEFT AIR CLEANER OUTLET PIPE .
Refer to: ELECTRIC COOLING FAN AND SHROUD .

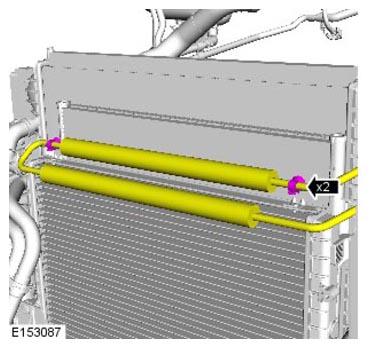

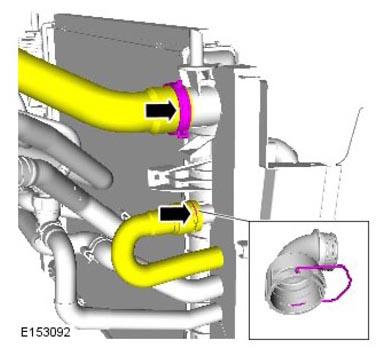

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Using a suitable tie strap, position and secure the component to one side.

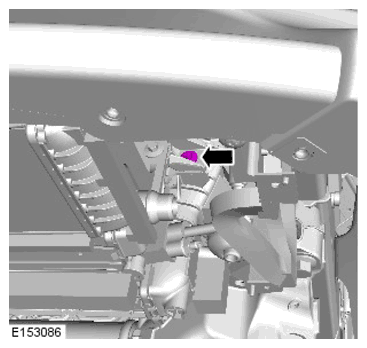

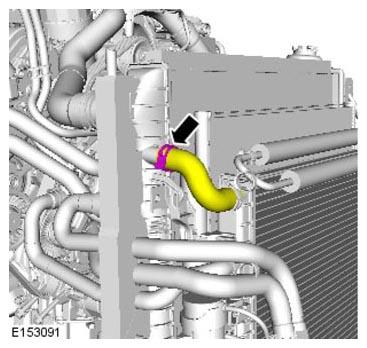

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

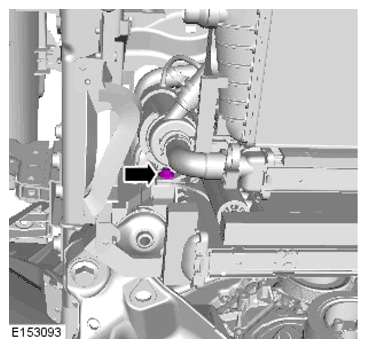

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

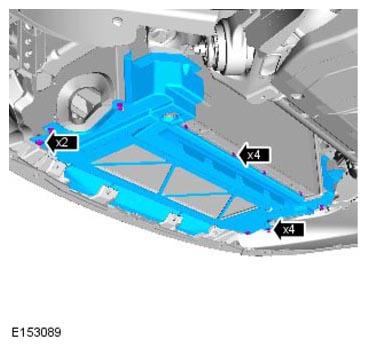

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

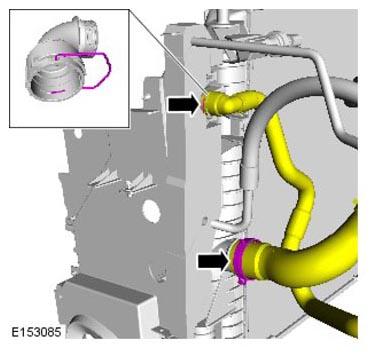

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

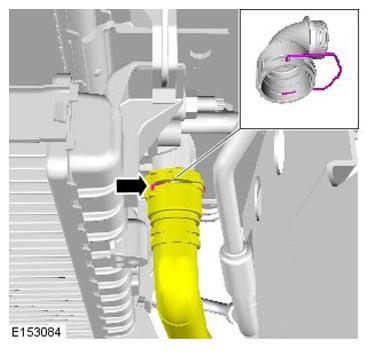

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

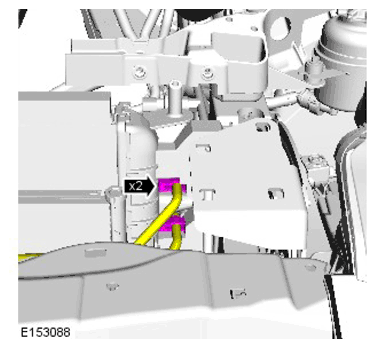

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
CAUTION: Protect the radiator during this operation.

NOTE: With assistance remove the component.

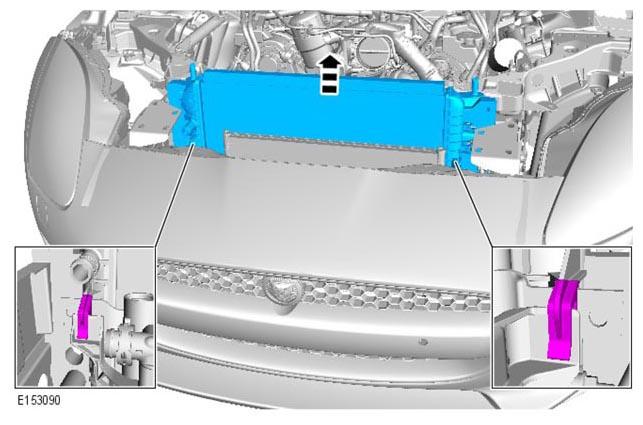

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
