Engine Coolant Level Switch (G2424651): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the coolant expansion tank.

    Refer to: COOLANT EXPANSION TANK (G1580407) .

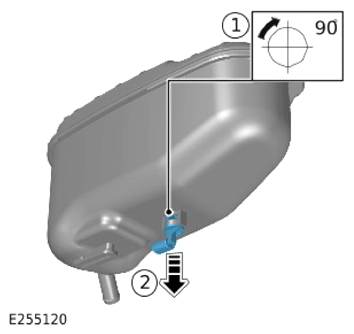

  2. G13887629Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Rotate the engine coolant level switch 90° in a clockwise direction.
    • Remove the engine coolant level switch.
