Electric Cooling Fan And Shroud (G1580408): Removal

CAUTION: Always protect the cooling pack elements to prevent accidental damage.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1898506) .
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL (G2264506) .
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
NOTE: Some components shown removed for clarity.

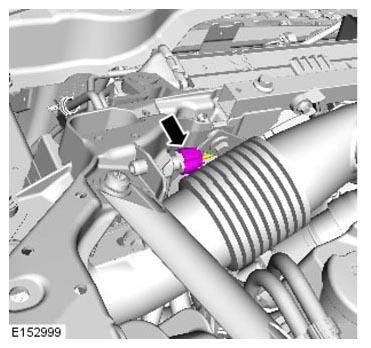

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Some components shown removed for clarity.

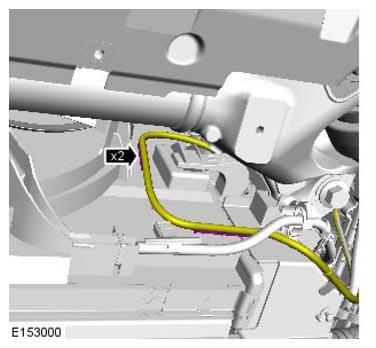

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

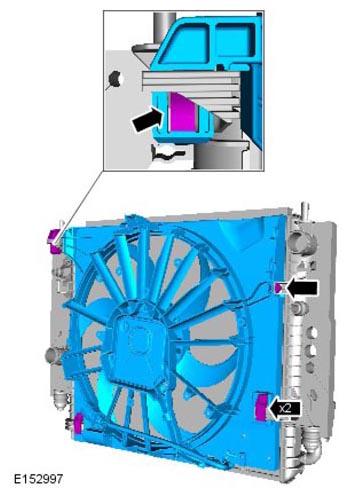

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

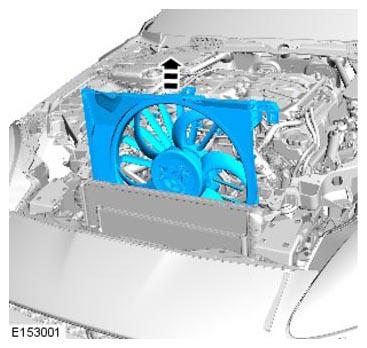

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

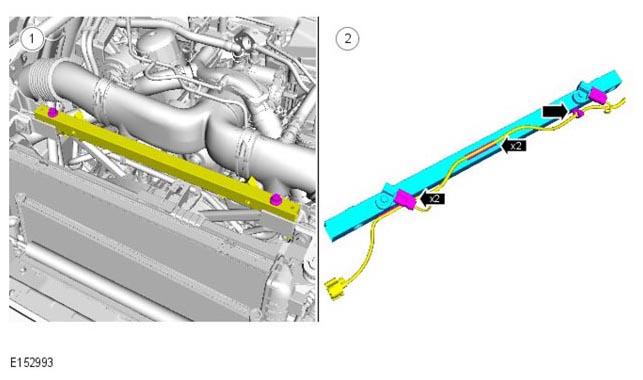

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm

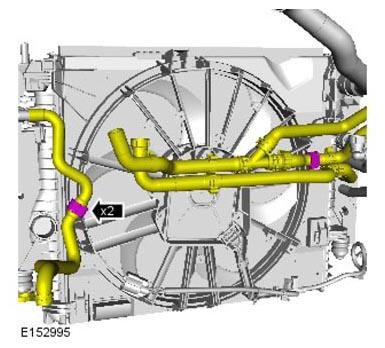

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
NOTE: Component shown removed for clarity.

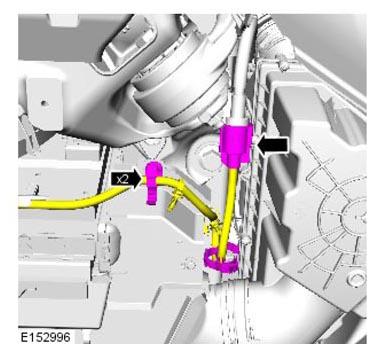

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Component shown removed for clarity.

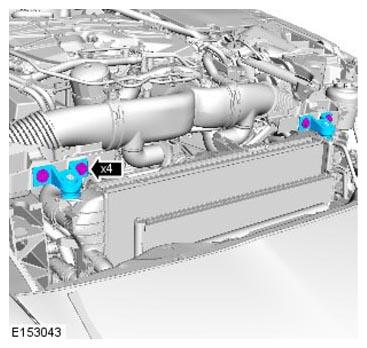

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
CAUTION: Always protect the cooling pack elements to prevent accidental damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
