Coolant Pump (G1580410): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1898506) .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING (G1853015) .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

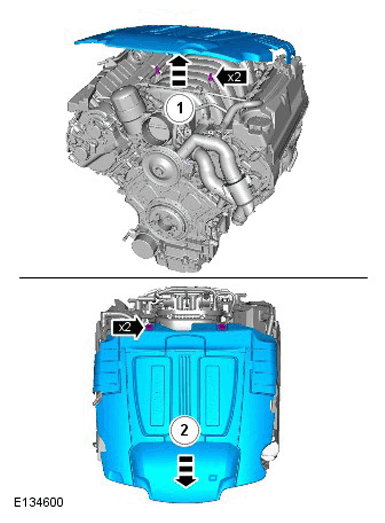

Remove the engine cover.
Drain the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the supercharger belt.
Refer to: SUPERCHARGER BELT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the coolant pump hose.
CAUTION:
- Make sure that the accessory drive belt is correctly located on each pulley.
- Clean and inspect the accessory drive belt pulleys for damage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the accessory drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the accessory drive belt tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable tool remove the coolant pump pipe.
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the coolant pump and discard the O-ring seals and gasket.
