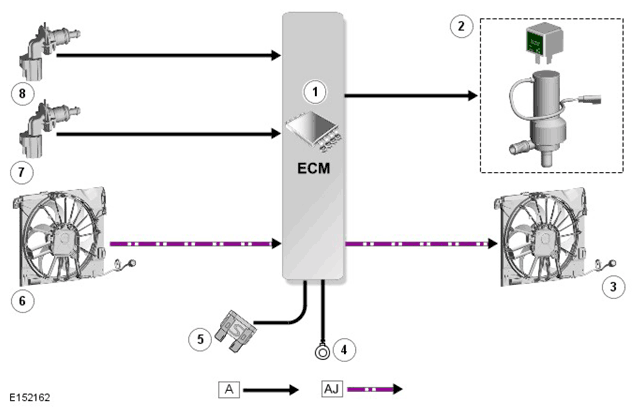

Input And Output Control Diagram
NOTE:
A
= Hardwired; AJ
= PWM
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Engine Control Module |
| 2 |
Charge Air Coolant Pump |
| 3 |
Radiator Fan |
| 4 |
Ground |
| 5 |
Power Supply |
| 6 |
Radiator Fan |
| 7 |
Engine Coolant Temperature Sensor 1 |
| 8 |
Engine Coolant Temperature Sensor 2 |
