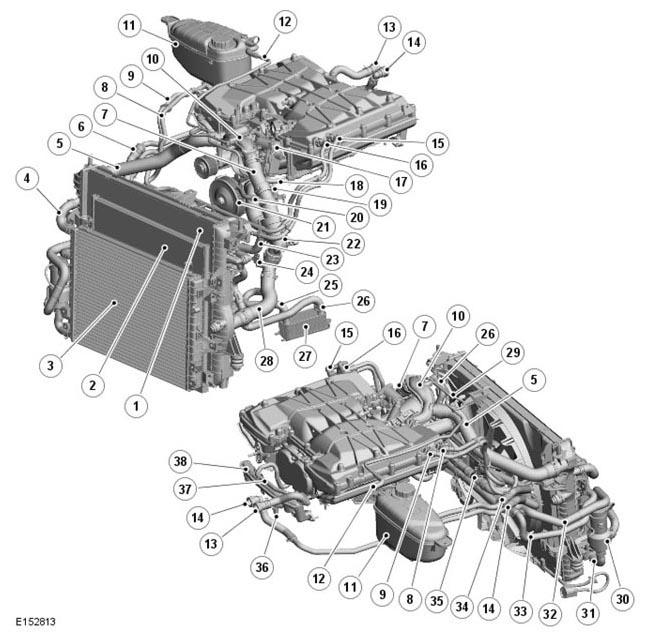

Component Location: Notes
Rest Of World Vehicles
| ITEM | DESCRIPTION |
|---|---|
| 1 | Radiator |
| 2 | Air Conditioning Condenser (reference only) |
| 3 | Charge Air Radiator (reference only) |
| 4 | Hose - Charge Air Radiator to Radiator - Supply |
| 5 | Radiator Upper Hose |
| 6 | Engine Coolant Return Hose |
| 7 | Hose - Thermostat Housing to Water Supply Tube |
| 8 | Hose - Supercharger to Charge Air Radiator - Return |
| 9 | Hose - Charge Air Radiator to Supercharger - Supply |
| 10 | Water Supply Tube |
| 11 | Coolant Expansion Tank |
| 12 | Air Bleed Hose Connection to Coolant Expansion Tank |
| 13 | Hose - Heater Core Supply |
| 14 | Hose - Heater Core Return |
| 15 | Hose - Charge Air Radiator to Supercharger - Supply |
| 16 | Hose - Supercharger to Charge Air Radiator - Return |
| 17 | Throttle Body |
| 18 | Hose - Throttle Body Heater Return |
| 19 | Water Outlet Tube |
| 20 | Hose - Throttle Body Heater Supply |
| 21 | Coolant Pump |
| 22 | Thermostat Housing |
| 23 | Hose Coolant Return |
| 24 | Engine Coolant Temperature (ECT) Sensor 2 |
| 25 | Hose - Automatic Transmission Fluid (ATF) Cooler Outlet |
| 26 | Hose - Automatic Transmission Fluid (ATF) Cooler Inlet |
| 27 | Automatic Transmission Fluid (ATF) Cooler |
| 28 | Radiator - Lower Hose |
| 29 | Hose - Air Bleed |
| 30 | Charge Air Coolant Pump |
| 31 | Hose - Charge Air Radiator Inlet |
| 32 | Hose - Charge Air Cooler to Supercharger - Supply |
| 33 | Hose - Charge Air Radiator to Radiator - Return |
| 34 | Hose - Heater Core Return |
| 35 | Coolant Return 'Y' Connector |
| 36 | Engine Coolant Temperature (ECT) Sensor 1 |
| 37 | Hose - Throttle Body Heater Return |
| 38 | Heater Supply Manifold |
