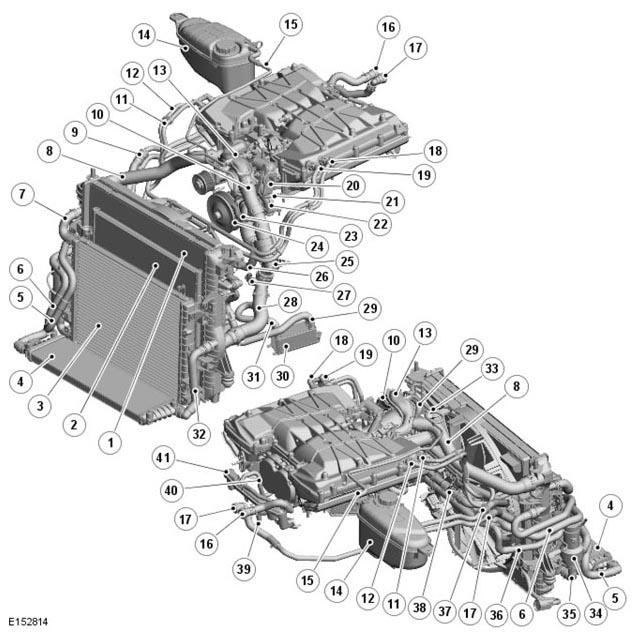

| 1 |
Radiator |
| 2 |
Air Conditioning Condenser (reference only) |
| 3 |
Charge Air Radiator (reference only) |
| 4 |
Auxiliary Radiator |
| 5 |
Auxiliary Radiator Inlet Hose |
| 6 |
Hose - Charge Air Radiator to Supercharger - Supply |
| 7 |
Hose - Charge Air Radiator to Radiator - Supply |
| 8 |
Radiator Upper Hose |
| 9 |
Engine Coolant Return Hose |
| 10 |
Hose - Thermostat Housing to Water Supply Tube |
| 11 |
Hose - Supercharger to Charge Air Radiator - Return |
| 12 |
Hose - Charge Air Radiator to Supercharger - Supply |
| 13 |
Water Supply Tube |
| 14 |
Coolant Expansion Tank |
| 15 |
Hose - Air Bleed Connection to Coolant Expansion Tank |
| 16 |
Hose - Heater Core Supply |
| 17 |
Hose - Heater Core Return |
| 18 |
Hose - Charge Air Radiator to Supercharger - Supply |
| 19 |
Hose - Supercharger to Charge Air Radiator - Return |
| 20 |
Throttle Body |
| 21 |
Hose - Throttle Body Heater Return |
| 22 |
Water Outlet Tube |
| 23 |
Hose - Throttle Body Heater Supply |
| 24 |
Coolant Pump |
| 25 |
Thermostat Housing |
| 26 |
Hose - Coolant Return |
| 27 |
Engine Coolant Temperature (ECT) Sensor 2 |
| 28 |
Radiator - Lower Hose |
| 29 |
Hose - Automatic Transmission Fluid (ATF) Cooler Inlet |
| 30 |
Automatic Transmission Fluid (ATF) Cooler |
| 31 |
Hose - Automatic Transmission Fluid (ATF) Cooler Outlet |
| 32 |
Hose - Auxiliary Radiator Outlet |
| 33 |
Hose - Air Bleed |
| 34 |
Charge Air Coolant Pump |
| 35 |
Hose - Charge Air Radiator Inlet |
| 36 |
Hose - Charge Air Radiator to Radiator - Return |
| 37 |
Hose - Heater Core Return |
| 38 |
Coolant Return 'Y' Connector |
| 39 |
Engine Coolant Temperature (ECT) Sensor 1 |
| 40 |
Hose - Throttle Body Heater Return |
| 41 |
Heater Supply Manifold |
