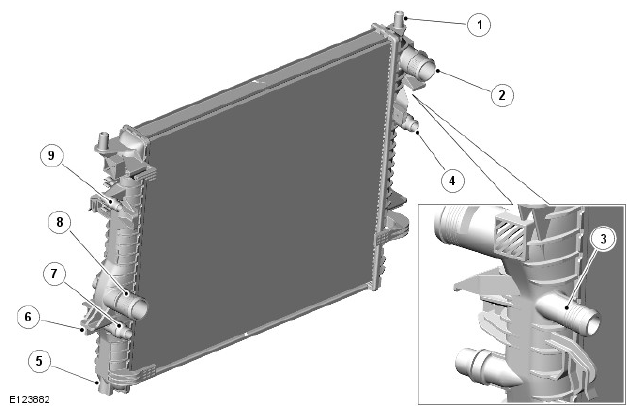

Component Description: Radiator
| ITEM | DESCRIPTION |
|---|---|
| 1 | Locating Spigot (2 Off) |
| 2 | Upper Hose Connection |
| 3 | Supercharger Cooling System Connection |
| 4 | Auxiliary Radiator Inlet Hose Connection |
| 5 | Drain Plug |
| 6 | Support (2 Off) |
| 7 | Auxiliary Radiator Outlet Hose Connection |
| 8 | Lower Hose Connection |
| 9 | Automatic Transmission Fluid (ATF) Cooler Outlet Hose Connection |
The radiator is a cross flow type with an aluminum core and plastic end tanks. The radiator is part of the cooling module and is attached to the vehicle by locating spigots and supports integrated into the end tanks. The supports are installed in rubber bushes located in mounting brackets on the front subframe. The locating spigots are installed in rubber bushes located in mounting brackets on the front cross member.
The two end tanks incorporate connections for the upper and lower hoses, the coolant supply hose of the transmission fluid cooler and the supply and return hoses of the auxiliary radiator(s). A drain plug is installed in the bottom of the left end tank.
The upper section of the radiator is separated to supply only the automatic transmission fluid (ATF) cooler. The left end tank of the radiator is partitioned and coolant from this part of the radiator is directed to the ATF cooler.
