Auxiliary Radiator - If Equipped

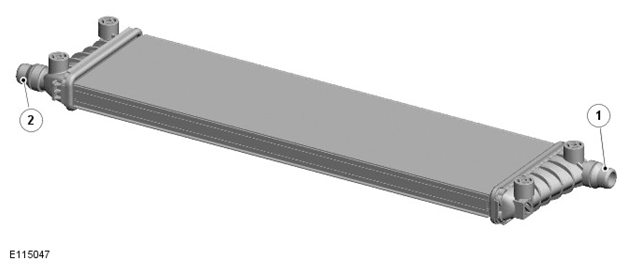

G11301328Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Supply Hose Connection
2 Return Hose Connection

The auxiliary radiator is connected in parallel with the (main) radiator to increase the engine cooling capacity on hot climate market vehicles.

The auxiliary radiator is mounted horizontally in an air deflector attached to the front of the charge air radiator. The two end tanks of the auxiliary radiator incorporate connections for the supply and return hoses that connect it to the main radiator.

The auxiliary radiator is attached to the air deflector with four flange head bolts. The air deflector is attached to the radiator.
