Brake Pedal And Brake Pedal Switch

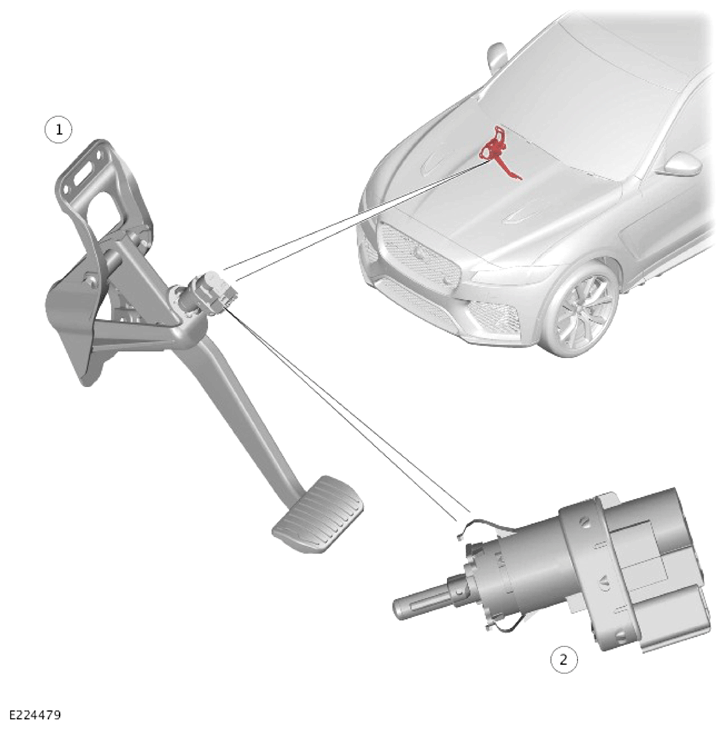

NOTE: Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
G13903185Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake pedal
2 Brake pedal switch

The brake pedal is installed in a bracket attached to the rear side of the engine bulkhead. A clevis pin connects the brake pedal to the actuator rod of the brake booster.

The brake pedal switch is installed in the bracket and operated by movement of the foot brake pedal.
