Torque Specifications

NOTE: Numbers with a green background are a single use component.

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM		LB-FT		LB-IN

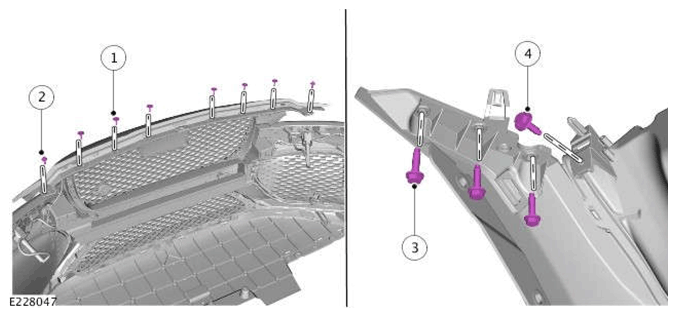

1	Front bumper upper screws	1.7		-		15
2	Front bumper upper bolts	2		-		18
3	Front bumper bolts to fender	10		7		-
4	Front bumper bolts to headlamp	10		7		-

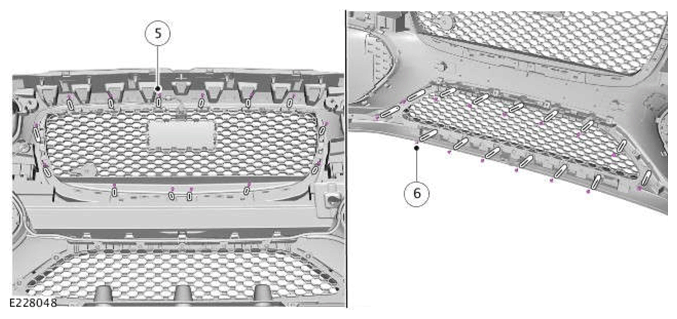

5	Radiator upper grille screws	2.5		-		22
6	Radiator lower grille screws	2.5		-		22

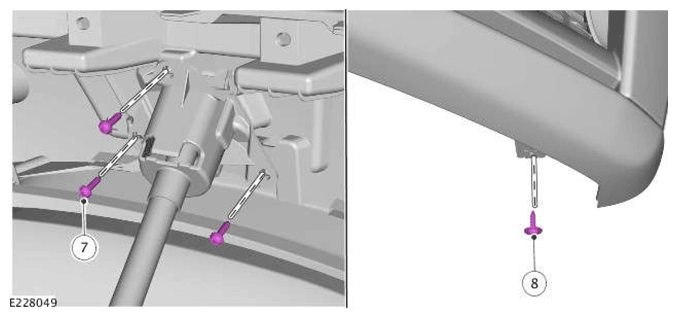

7	Headlamp washer jet screws	2.5		-		22
8	Front bumper lower screws	2		-		18

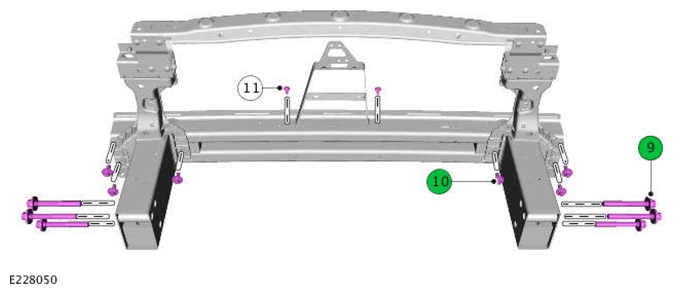

9	Front armature side bolts (M12)	110		81		-
10	Front armature side bolts (M8)	110		81		-
11	Adaptive Speed Control Module (ASCM) bracket screws	4.1		-		36

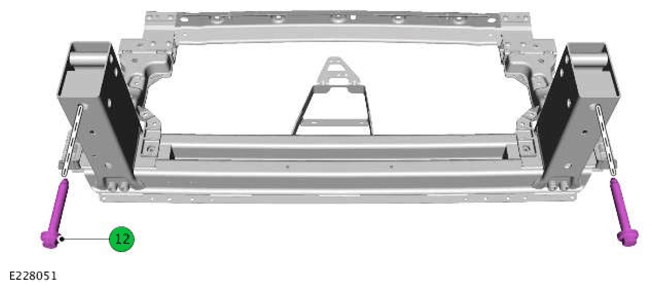

12	Front subframe to armature bolts	Stage 1 - 110 Nm	Stage 2 - 180 Degrees	Stage 1 - 81 lb-ft	Stage 2 - 180 Degrees	-

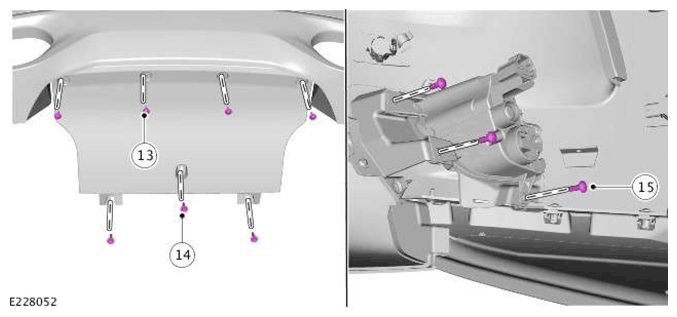

13	Rear bumper lower valance screws (M5)	2		-		18
14	Rear bumper lower valance bolts	2		-		18
15	Rear fog lamp screws	1.35		-		12

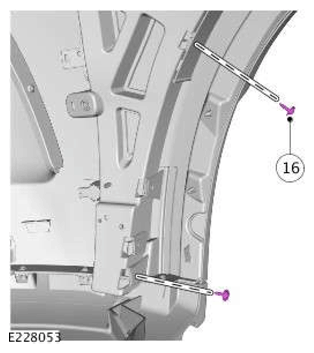

16	Rear bumper outside screws	2		-		18

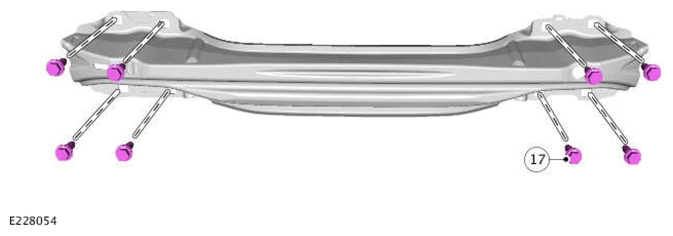

17	Rear armature bolts	170		125		-
