Rear Bumper - V8 S/C 5.0L Petrol (G2263083): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
NOTE: Repeat the procedure for the other side.

Remove the rear wheels and tires.

Refer to: WHEEL AND TIRE - V8 S/C 5.0L PETROL .
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

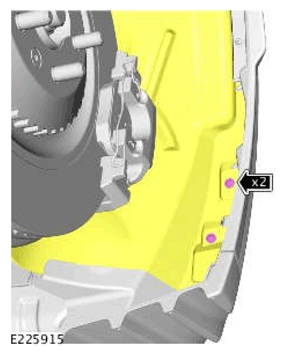

Remove the 2 screws from the wheel arch liner.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

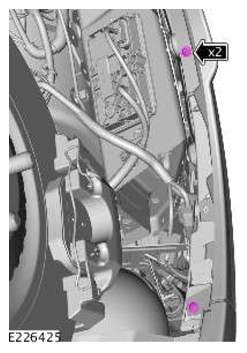

Remove the 2 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

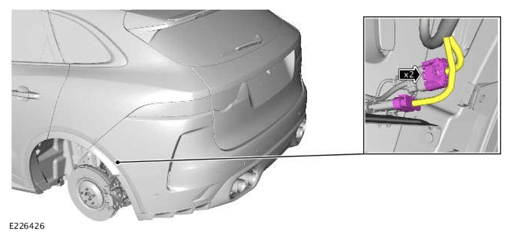

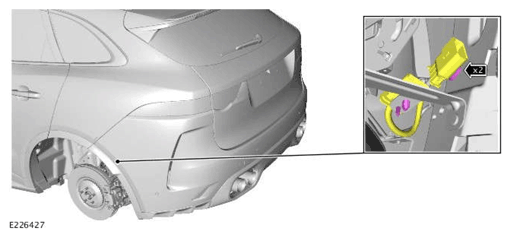

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 wiring harness clips from the rear bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

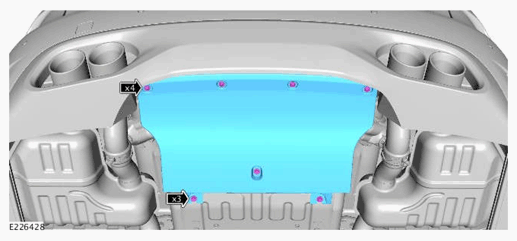

- Remove the 7 bolts.
- Remove the rear valance.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

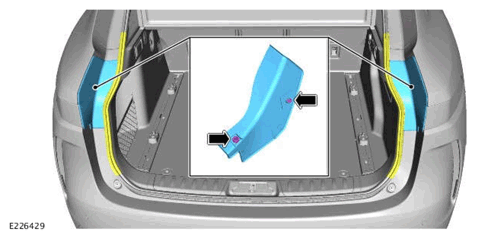

- Release the tailgate weatherstrip.
- Remove the 2 rear quarter panel mouldings.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

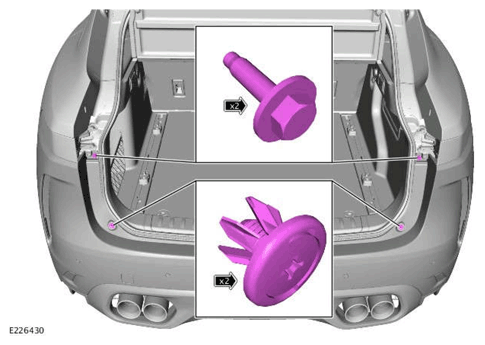

Remove the 2 rear bumper upper bolts and 2 fasteners from the rear bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

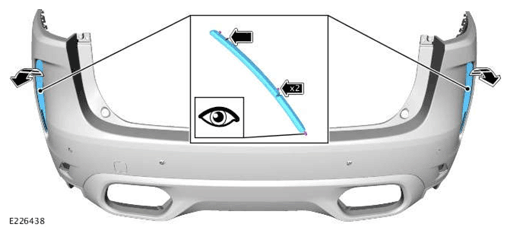

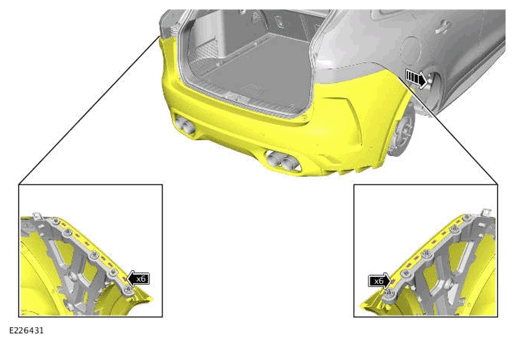

Release the rear bumper on both sides.
CAUTION: Make sure to protect the paintwork.

NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

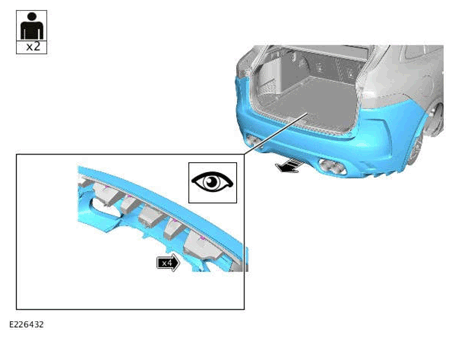

With assistance, remove the rear bumper.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

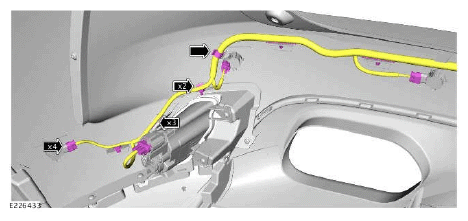

- Disconnect the 4 electrical connectors.
- Release the 6 clips.
- Release the rear bumper wiring harness on the right side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

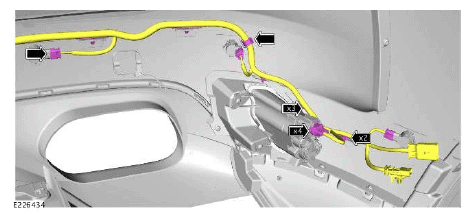

- Disconnect the 4 electrical connector.
- Release the 6 clips.
- Release the rear bumper wiring harness on the left side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

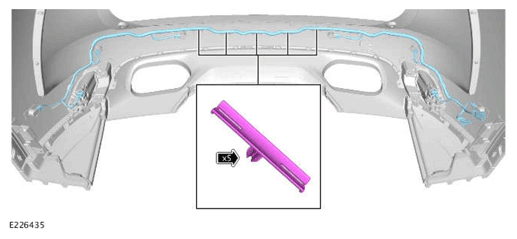

- Release the 4 clips.
- Remove the rear bumper wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

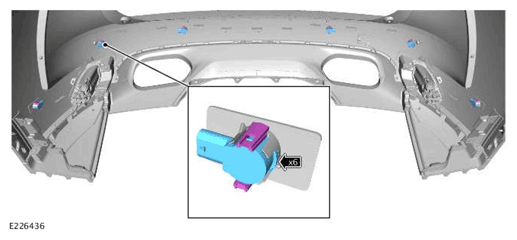

- Remove the 4 parking aid sensors.
- Remove the 2 park assist sensors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

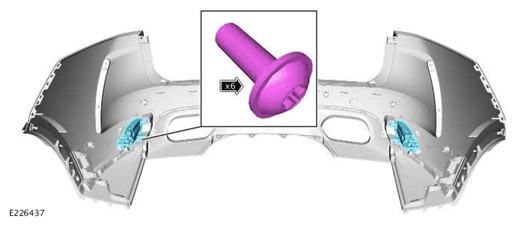

- Remove the 6 bolts.
- Remove the rear fog lamps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the rear bumper reflectors.
NOTE:
- Take extra care when releasing the clips.
- Repeat the step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

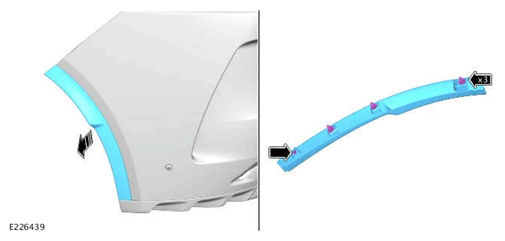

Remove the trim panel.
