Rear Bumper - INGENIUM I4 2.0L Diesel/INGENIUM I4 2.0L Petrol/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol (G1900121): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

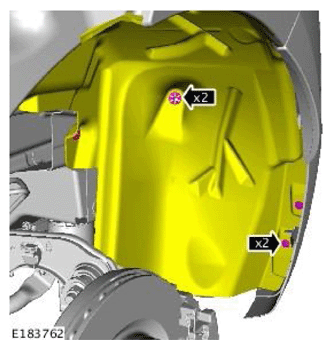

  2. NOTE: Repeat the step for the other side.
    G11561171Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

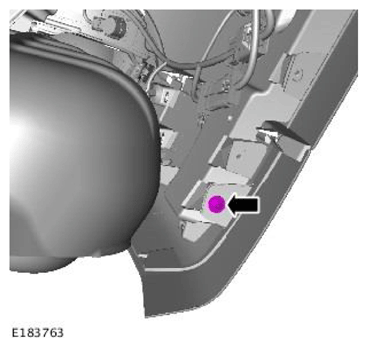

  3. NOTE: Repeat the step for the other side.
    G11561172Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

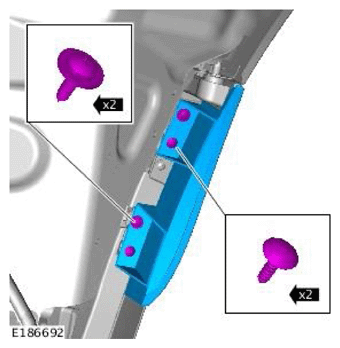

  4. NOTE: Repeat the step for the other side.
    G11561173Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

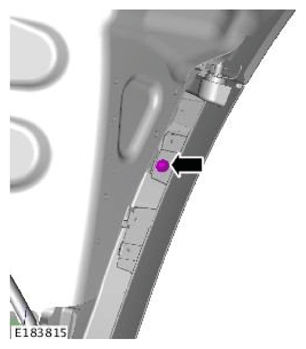

  5. NOTE: Repeat the step for the other side.
    G11561174Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

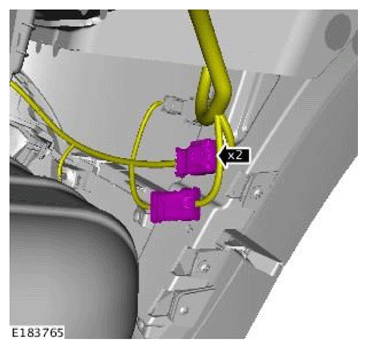

  6. G11561175Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

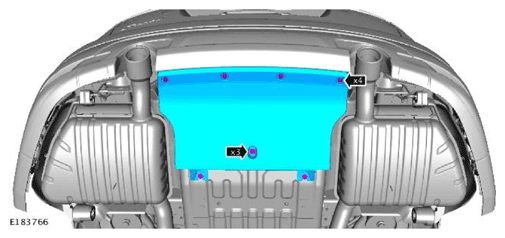

  7. G11561176Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

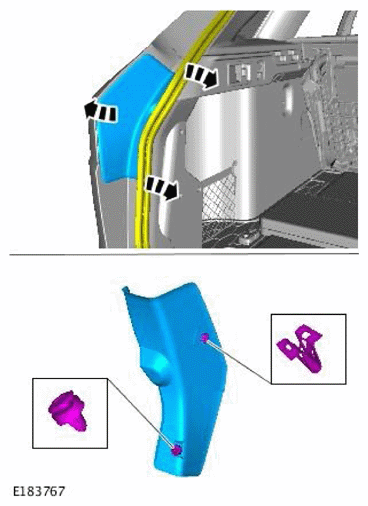

  8. NOTE: Repeat the step for the other side.
    G11561177Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

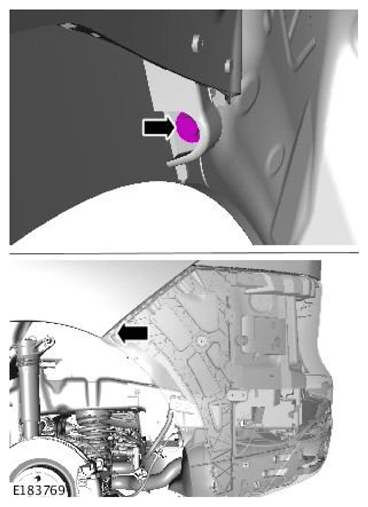

  9. NOTE: Repeat the step for the other side.
    G11561178Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

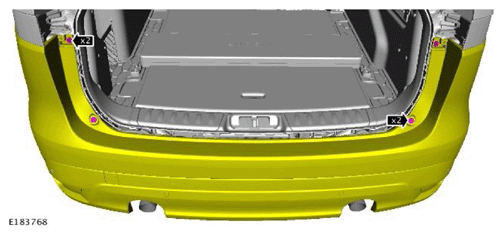

  10. G11561179Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

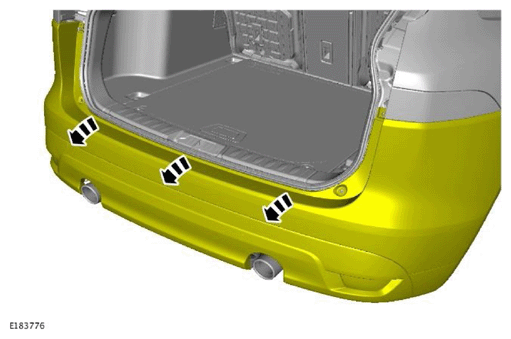

  11. G11561180Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

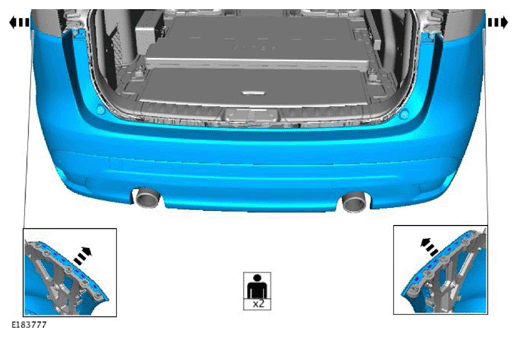

  12. WARNING: This step requires the aid of another technician.
    CAUTION: Make sure to protect the paintwork.
    G11561181Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

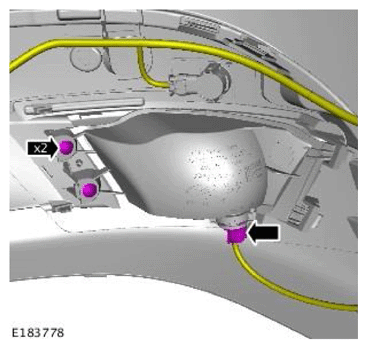

  13. NOTE: Do not disassemble further if the component is removed for access only.
    G11561182Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

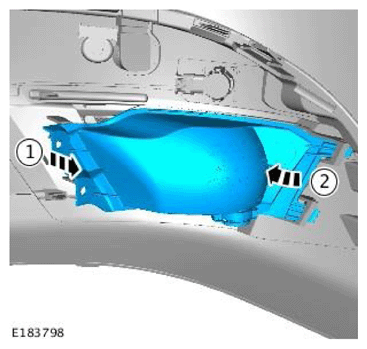

  14. NOTE: Repeat the step for the other side.
    G11561183Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

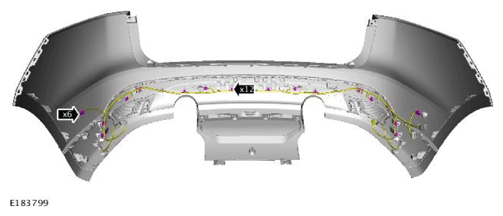

  15. G11561184Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

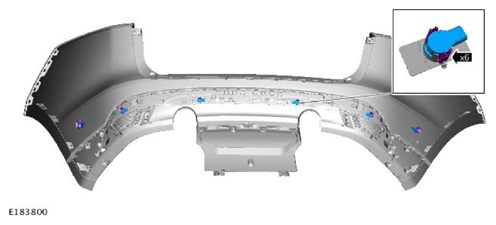

  16. G11561185Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
