Front Bumper - V8 S/C 5.0L Petrol (G2263081): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
NOTE: Repeat the procedure for the other side.

Remove the front wheels and tires.

Refer to: WHEEL AND TIRE - V8 S/C 5.0L PETROL .
NOTE: Repeat the step for the other side.
- Remove the front wheel arch liner.
  Refer to: FRONT WHEEL ARCH LINER - V8 S/C 5.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

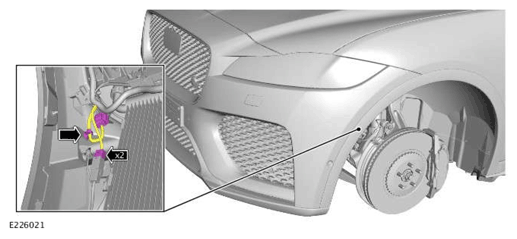

- Disconnect the 2 electrical connectors.
- Release the clip.
CAUTION: Clamp the hose to minimize fluid loss.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

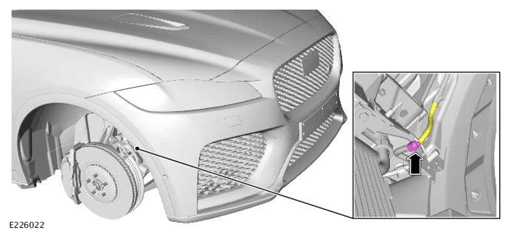

Disconnect the washer jet hose.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

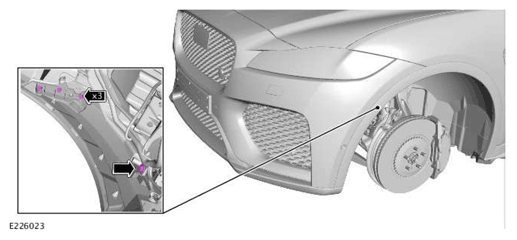

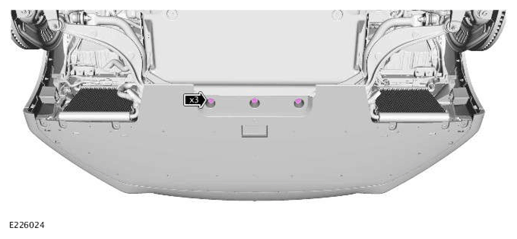

Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

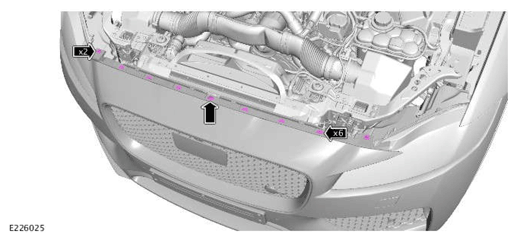

Remove the 8 upper screws and the clips from the front bumper.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

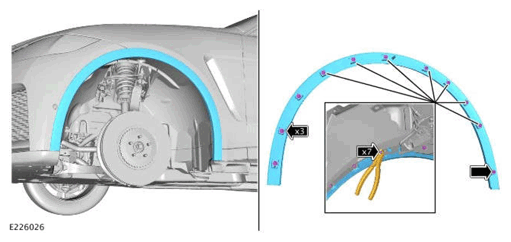

- CAUTION: Make sure all cut clips are removed and discarded. The cut clips must not be left in the body.

  Using a suitable tool, cut the 7 clips as illustrated.
- CAUTION: Take extra care the front fender is not damaged during the wheel arch moulding removal.

  Carefully release the 10 clips.
- Remove the wheel arch moulding.
- Discard the 7 cut clips.
CAUTION: Make sure that the vehicle paintwork is protected.

NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

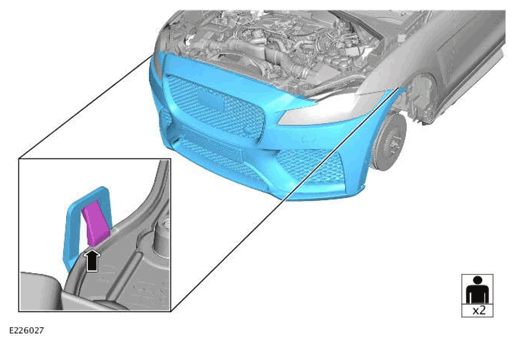

With assistance, remove the front bumper.
NOTE:
- Only do the following step(s) if a new component is to be installed.
- Take extra care when releasing the clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

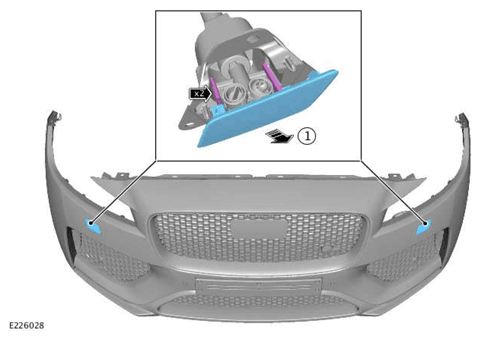

Remove the headlamp washer jet covers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

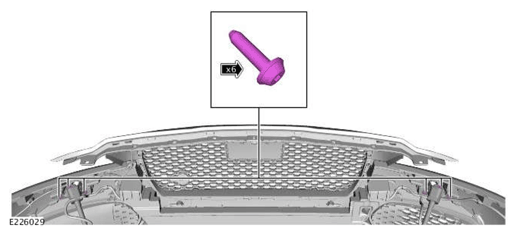

Remove the 6 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

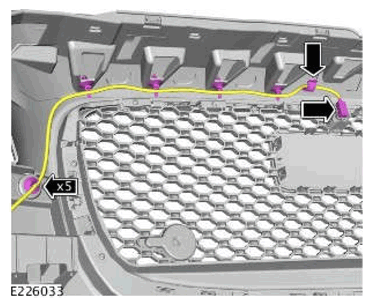

- Release the washer jet hose from the clips.
- Remove the washer hose with the washer jet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

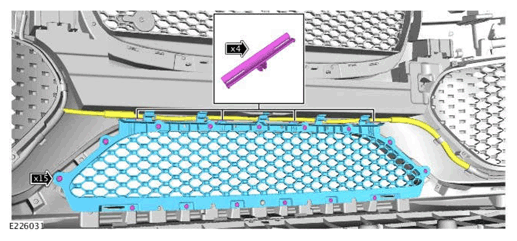

- Remove the 15 screws.
- Remove the front bumper lower grille.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

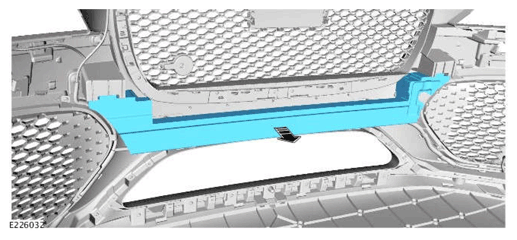

Remove the front bumper insulator foam.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

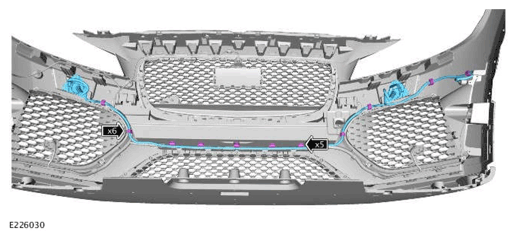

- Disconnect the electrical connector.
- Release the 6 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

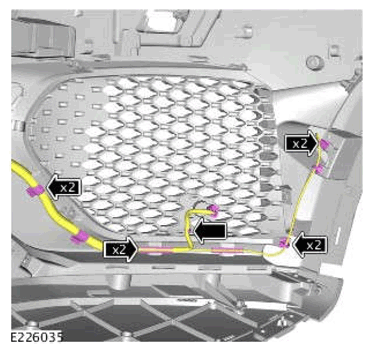

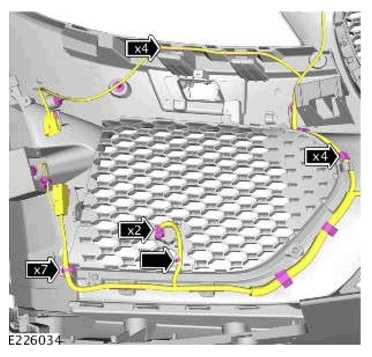

- Disconnect the 2 electrical connectors.
- Release the 16 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors.
- Release the 7 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

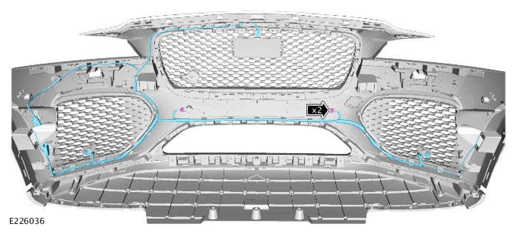

- Disconnect the 2 electrical connectors.
- Remove the front bumper harness.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

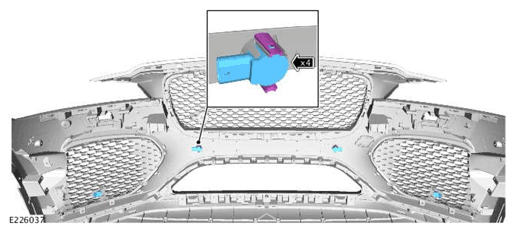

Remove the 4 parking aid sensors.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

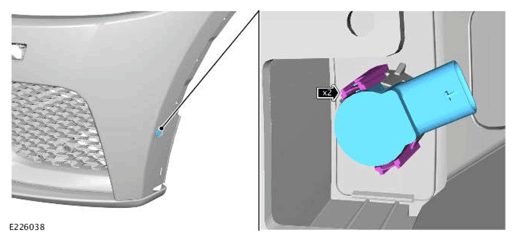

Remove the 2 park assist sensors.
CAUTION: Take extra care not to damage the clips.

NOTE: Note the orientation of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

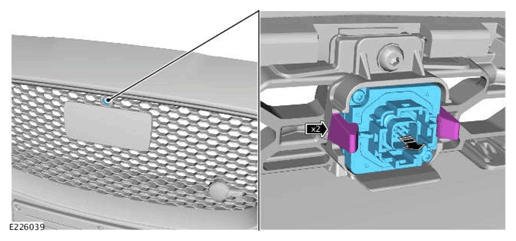

Remove the front proximity camera.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

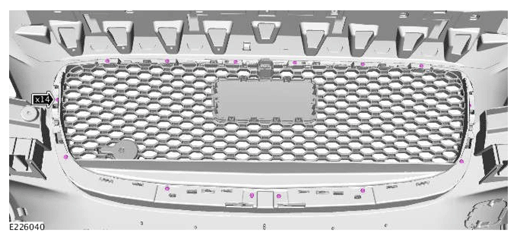

Remove the 14 screws.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

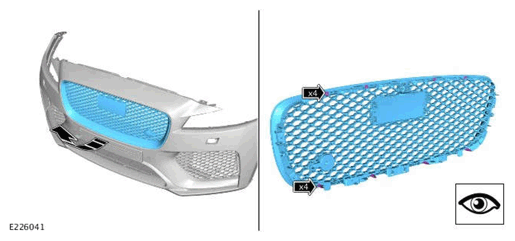

Remove the radiator grille.
